PE4949 C Male Right Angle Connector | Crimp/Solder Attachment

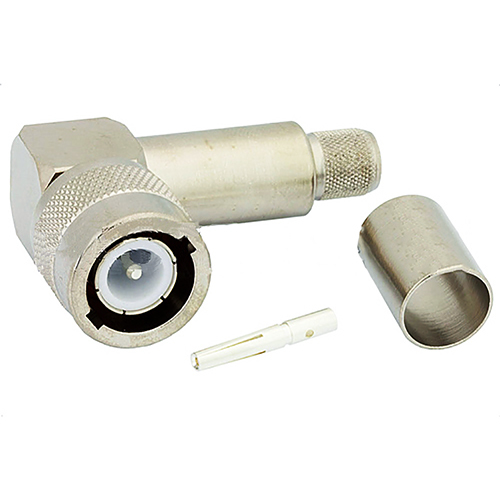

Right Angle Coax Crimp Connector

PASTERNACK

CALL FOR PRICING
Available To Order
EDMO#PE4949
MFR#PE4949

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The PE4949 C male right angle connector features a crimp/solder attachment method for attaching to RG214, RG9, and RG393 coax cable. This connector has a 50Ω impedance, silver-plated contacts, and MIL-STD-348 compatible.

Features

  • C-type male connector
  • Right angle body geometry
  • 50Ω impedance
  • Silver-plated contact per QQ-S-365 specifications
  • RG214, RG9, RG393 cable compatibility

Specifications

Weight:
0.127 lb (57.61 mm)

Dimensions:
2.16 x 1.3 x 0.75 in (54.86 x 33.02 x 10.05 mm)

Connector Type:
C male

Body Geometry:
Right angle

Attachment Method:
Crimp/solder attachment

Impedance:
50Ω

Contact Plating:
Silver (QQ-S-365 standard)

Insulation Material:
PTFE

Body Material:
Nickel-plated brass (QC-N-290)

Coupling Nut Material:
Nickel-plate brass (QQ-N-290)

Product Codes

  • Mfr Part No:PE4949
  • EDMO #:PE4949
  • Brand:PASTERNACK
  • Category:Electrical Interconnect
