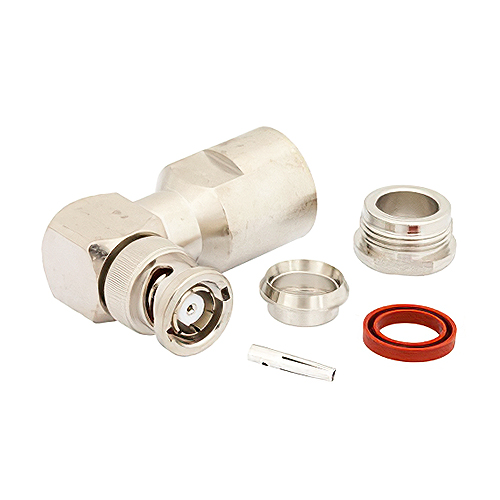

PE4727 BNC Male Right Angle Connector Clamp/Solder Attachment | Reverse Polarity, MIL-SPD-348
Product Description
The PE4727 BNC male right angle connector features clamp/solder attachment method for attaching to RG213, RG214, RG8, RG9, RG225, RG393, and RG215 coax cables. This connector a 50Ω impedance, silver0-plated contacts, reverse polarity and is MIL-STD-348 compatible.
Features
- BNC male reverse polarity connector
- Right angle body geometry
- 50Ω impedance
- Silver-plated contact
- RG213, RG214, RG8, RG9, RG225, RG393, and RG215 cable compatibility
Specifications
Weight:
0.151 lb (68.49 g)
Dimensions:
1.84 x 0.75 x 1.65 in (46.74 x 19.05 x 29.59 mm)
Connector Type:
BNC male (reverse polarity)
Impedance:
50Ω
Body Geometry:
Right angle
Attachment Method:
Clamp/solder method
Contact Material:
Silver (QQ-S-365)
Insulation Material:
PTFE
Body Material:
Nickel-plated (QQ-N-290)
Coupling Material:
Nickel-plated brass (QQ-N-290)
Operating Temperature:
-65°C to 165°C
Cable Compatibility:
RG213, RG214, RG8, RG9, RG225, RG393, RG215 interface types
Product Codes
- Mfr Part No:PE4727
- EDMO #:PE4727
- Brand:PASTERNACK
- Category:Electrical Interconnect
