Right Angle TNC Male Connector | Reverse Polarity, Crimp/Solder Attachment, 50 Ohm
Product Description

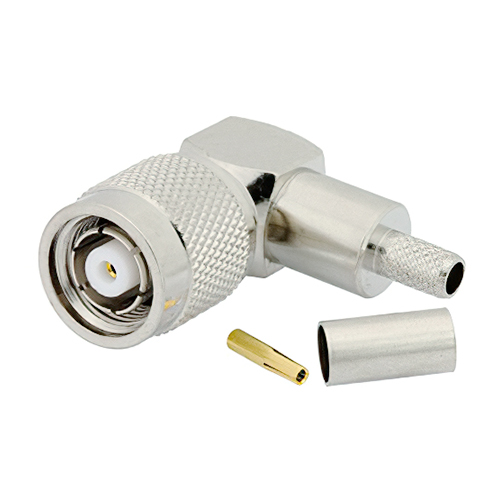

This TNC Male Connector (EDMO# PE4677) has a right angle geometry, a 50Ω impedance, and features a crimp/solder attachment, and is reverse polarity. It fits RG55, RG141, RG142, RG223, RG400.
Features
- 3 GHz maximum operating frequency
- Gold plated, brass contact
- 30 µ-inch minimum contact plating
- Reverse polarity
Specifications
Weight:
0.061 lb (27.67 g)
Dimensions:
1.146 x 1.142 x 0.571 in (29.11 x 29.01 x 14.5 mm)
Body Geometry:
Right Angle
Impedance:
50Ω
Connector Type:
BNC Male
Attachment Type:
Crimp Solder
Frequency Range:
DC to 3 GHz
Operating Voltage:
500 Vrms
Contact Material:
Gold plated, brass
Insulation Material:
PTFE
Body Material:
Nickel plated, brass
Temperature:
-65°C to 165°C
Product Codes
- Mfr Part No:PE4677
- EDMO #:PE4677
- Brand:PASTERNACK
- Category:Electrical Interconnect
