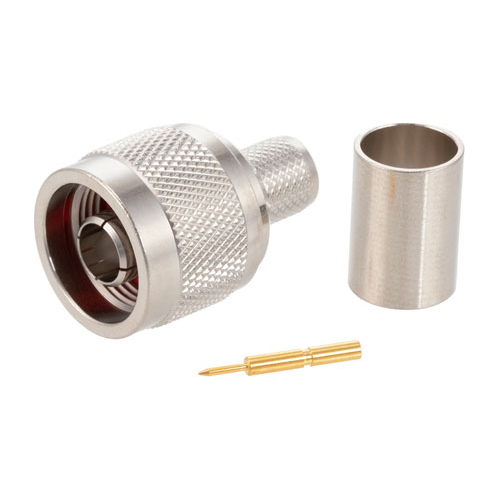

PE4510 N Male Connector | 75Ω, Crimp/Solder, Straight
Product Description
The PE4510 N male connector is a straight connector that has a crimp/solder attachment. It can fit over RG11A/U, RG144, and RG216 RF cable.
Features
- 11 GHz maximum operating frequency
- Gold-plated, brass contact
- Crimp/Solder Attachment
Specifications
Weight:
0.082 lbs (37.19 g)
Dimensions:
1.504 x 0.8 x 0.8 in (38.2 x 20.32 x 20.32 mm)
Operating Range:
-65°C to 165°C
Polarity:
Standard
Connector:
N Male
Impedance:
75Ω
Body Style:
Straight
Attachment Method:
Crimp/Solder
Frequency Range:
DC – 11 GHz
Operating Voltage (AC):
1,500 Vrms
Inner Conductor DC Resistance:
1 mΩ
Outer Conductor DC Resistance:
0.2 mΩ
Insulation Resistance:
5,000 MΩ
VSWR:
1.3:1 Max
Mating Cycles:
500 Cycles
Contact Material:
Gold Plated Brass
Body Material:
Nickel Plated Brass
Product Codes
- Mfr Part No:PE4510
- EDMO #:PE4510
- Brand:PASTERNACK
- Category:Electrical Interconnect
