N Male Connector | Right angle, Crimp/Solder
Product Description

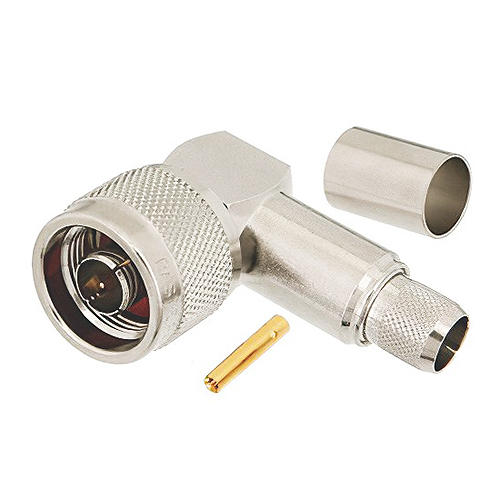

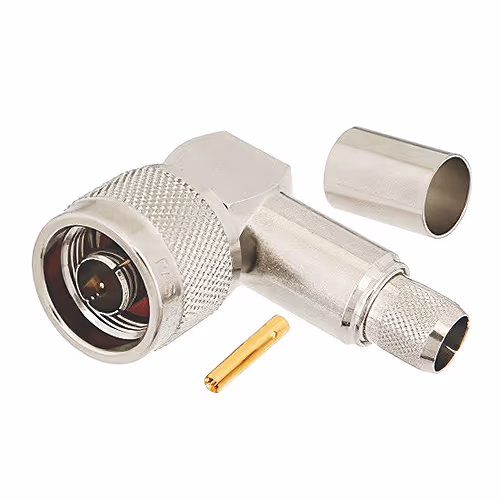

The PE4483 N male connector features a crimp/solder attachment for RG214, RG9, RG225, and RG393 coaxial cable. The connector operates up to a maximum frequency of 11 GHz and offers VSWR of 1.5:1. This N connector has a right angle brass body with nickel plating and uses a gold-plated brass contact.
Features
- N male connector
- MIL-STD-348A
- 50Ω impedance
- 11 GHz Max. operating frequency
- VSWR 1.5:1
- Gold-plated brass contact
Specifications
Weight:
0.135 lb (61.23 g)
Dimensions:
1.99 x 0.8 x 1.28 in (50.55 x 20.32 x 32.77 mm)
Body Geometry:
right angle
Connect Interface Types:
RG214, RG9, RG225, RG393
Contacts:
gold-plated brass contact
Minimum Contact Plating:
30 µ-in
Impedance:
50Ω
VSWR:
1.5:1
Product Codes
- Mfr Part No:PE4483
- EDMO #:PE4483
- Brand:PASTERNACK
- Category:Electrical Interconnect
