TNC Female Straight Connector | 50 Ω, Crimp/Solder
Product Description

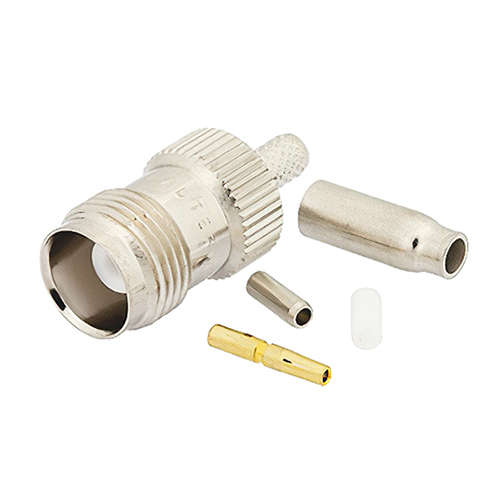

This PE4462 TNC female coaxial connector has an interface type of RG174, RG316, RG188, PE-B100, PE-C100, 0.100 inch, LMR-100 and a 50 Ohm impedance. This connector uses shield/contact crimp/solder as an attachment method and has a PTFE dielectric type. It features a brass body with nickel plating, uses brass contact and is RoHS and REACH compliant.
Features
- Straight body geometry
- TNC female connector
- 50Ω impedance
- Crimp/Solder attachment method
- RG174, RG316, RG188, PE-B100, PE-C100, 0.100 inch, and LMR-100 interface type
Specifications
Weight:
0.021 lb (9.53 g)
Dimensions:
1.282 x 0.45 in (32.56 x 11.42 mm)
Connector Type:
TNC female
Impedance:
50Ω
Attachment Method:
Crimp/solder
Contact Material:
Gold-plated brass
Insulation Materials:
PTFE
Body geometry:
Nickel-plated brass
Cable Compatibility:
RG174, RG316, RG188, PE-B100, PE-C100, 0.100 inch, and LMR-100
Product Codes
- Mfr Part No:PE4462
- EDMO #:PE4462
- Brand:PASTERNACK
- Category:Electrical Interconnect
- ECCN:EAR99
- ECCN:EAR99
- SCHEDULE B CODE:8536.69.4010
- SCHEDULE B CODE:8536.69.4010
