TNC Male Connector | Straight, Crimp/Solder


PASTERNACK

CALL FOR PRICING
Available To Order
EDMO#PE4447
MFR#PE4447

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

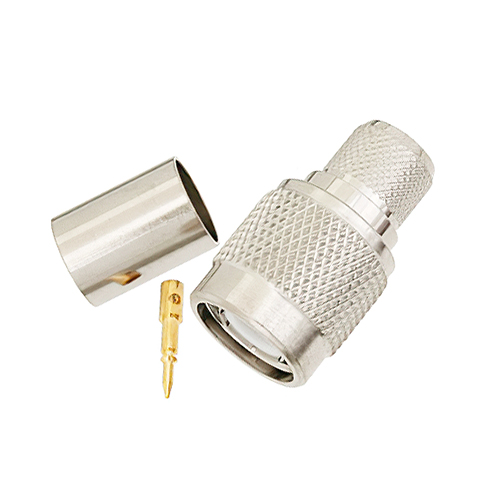

The PE4447 TNC male connector features a crimp/solder attachment for RG214, RG9, RG225, and RG393 coaxial cable. The connector operates up to a maximum frequency of 6 GHz and offers VSWR of 1.4:1. This TNC connector has a brass body with nickel plating and uses a gold-plated brass contact.

Features

  • TNC male connector
  • MIL-STD-348A
  • 50Ω impedance
  • 6 GHz Max. operating frequency
  • VSWR 1.4:1
  • Gold-plated brass contact

Specifications

Weight:
0.043 lb (19.5 g)

Dimensions:
1.0366 x 0.591 in (34.7 x 15.01 mm)

Body Geometry:
straight

Connect Interface Types:
RG214, RG9, RG225, RG393

Contacts:
gold-plated brass contact

Minimum Contact Plating:
30 µ-in

Product Codes

  • Mfr Part No:PE4447
  • EDMO #:PE4447
  • Brand:PASTERNACK
  • Category:Electrical Interconnect
