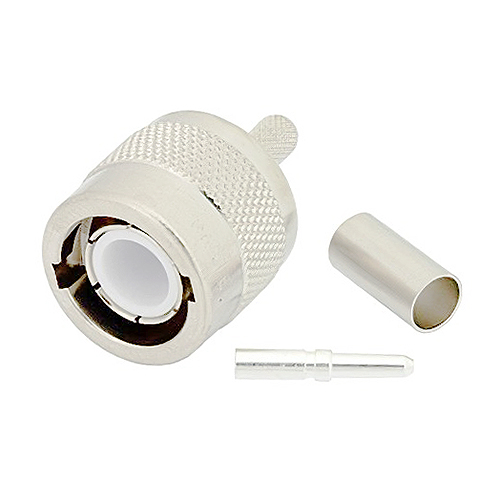

PE4445 C Male Connector | 50Ω, Straight, Crimp/Solder
Product Description
The PE4445 C male connector features a crimp/crimp attachment for RG55, RG141, RG142, RG223, and RG400 coaxial cable. The connector operates up to a maximum frequency of 6 GHz and offers VSWR of 1.45:1. This C connector has a brass body with nickel plating and uses silver-plated brass contact.
Features
- C male connector
- MIL-STD-348A
- 50Ω impedance
- 6 GHz Max. operating frequency
- VSWR 1.45:1
- Silver-plated brass contact
Specifications
Weight:
0.055 lb (24.95 g)
Dimensions:
1.4 x 0.75 in (35.56 x 19.05 mm)
Body Geometry:
Straight
Frequency Range:
DC to 6 GHz
VSWR:
1.45:1
Operating Voltage:
1000 Vrms
Temperature Rating:
-65ºC to 165ºC
Connect Interface Types:
RG55, RG141, RG142, RG223, RG400
Contacts:
Silver-plated brass contact
Minimum Contact Plating:
100 µ-in
Product Codes
- Mfr Part No:PE4445
- EDMO #:PE4445
- Brand:PASTERNACK
- Category:Electrical Interconnect
