SMA Male Right Angle Crimp/Solder Connector | RG58, RG303, RG141, PE-C195, PE-P195, LMR-195
Product Description

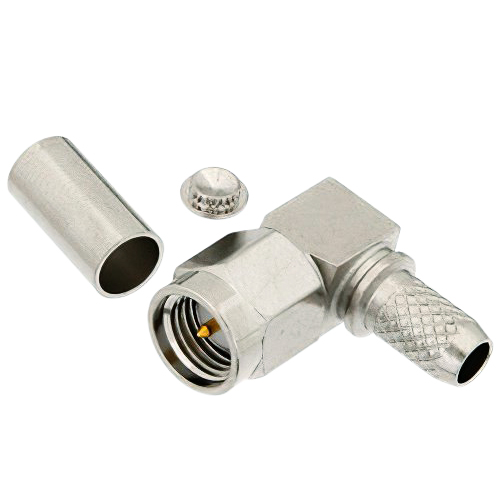

The PE4405 is a 50Ω SMA male RF connector that features a right angle body geometry and a crimp/solder type attachment method. This contact also has a maximum 1.4:1 VSWR and operating up to 12.4 GHz and compatible with RG58, RG303, RG141, PE-C195, PE-P195, and LMR-195 coaxial cable. MIL-STD-348A compliant.
Features
- SMA male connector
- Right angle body geometry
- MIL-STD-348A standard
- 50Ω impedance
- DC – 12.4 GHz operating frequency
- 1.4:1 VSWR
- Gold-plated contact with 50 µin plating
- Compatible with RG58, RG303, RG141, PE-C195, PE-P195, LMR-
- 195, .195 inch Interface Type
- Crimp/Solder attachment
- 5/16-inch Hex
Specifications
Weight:
0.014 lb (7.71 g)
Dimensions:
0.8 x 0.315 x 0.65 in (20.32 x 8.0 x 6.51 mm)
Polarity:
standard
Connector Series:
SMA
Connector Gender:
male
Body Style:
right angle
Attachment Method:
crimp/solder
Frequency Range:
DC – 12.4 GHz, max.
VSWR:
1.4:1, max.
Operating Voltage:
500 VRMS (AC)
Mating Torque:
3 – 5 in-lb (0.34 – 0.57 Nm)
Contact Material:
gold-plated brass (μin minimum)
Insulation Material:
PTFE
Body Material:
nickel-plated brass (100 µin minimum)
Coupling Nut Material:
nickel-plated brass (100 µin minimum)
Crimp Sleeve Material:
Nickel-plated brass
Temperature Range:
-65°C to 165°C (operating)
Product Codes
- Mfr Part No:PE4405
- EDMO #:PE4405
- Brand:PASTERNACK
- Category:Electrical Interconnect
