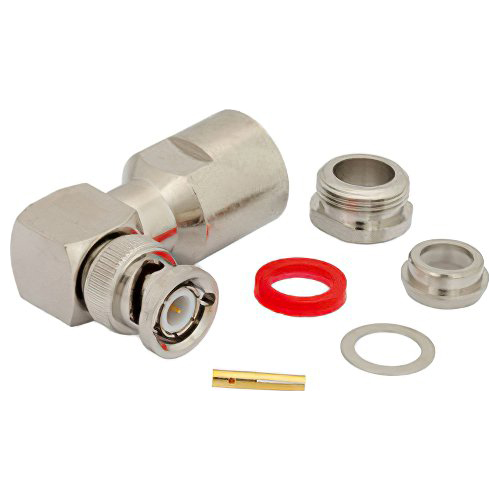

PE4387 BNC Male Connector | 50Ω, Clamp/Solder, Right Angle
Product Description
The PE4387 BNC male right angle coaxial connector has an interfaces with RG213, RG214, RG8, RG9, RG11, RG225, RG393, RG144, RG216, RG215 cable types and a 50 Ohm impedance. It uses shield/contact clamp/solder as an attachment method, provides a frequency range of DC to 4 GHz, has a PTFE dielectric type, a VSWR of 1.35, and is RoHS and REACH compliant. This connector has a brass body with nickel plating and a brass contact with gold plating.
Features
- DC to 4 GHz operating frequency range
- Gold-plated brass contact
- Nickel-plated brass body
- Clamp/Solder Attachment
Specifications
Weight:
0.146 lbs (66.22 g)
Dimensions:
1.84 x 0.75 x 1.178 in (46.74 x 19.05 x 29.92 mm)
Operating Range:
-65°C to 165°C
Polarity:
Standard
Connector:
BNC Male
Impedance:
50Ω
Body Geometry:
Right Angle
Attachment Method:
Clamp/Solder
Frequency Range:
DC – 4 GHz
Operating Voltage (AC):
500 Vrms
VSWR:
1.35:1 Max
Contact Material:
Gold Plated Brass
Body Material:
Nickel Plated Brass
Product Codes
- Mfr Part No:PE4387
- EDMO #:PE4387
- Brand:PASTERNACK
- Category:Electrical Interconnect
