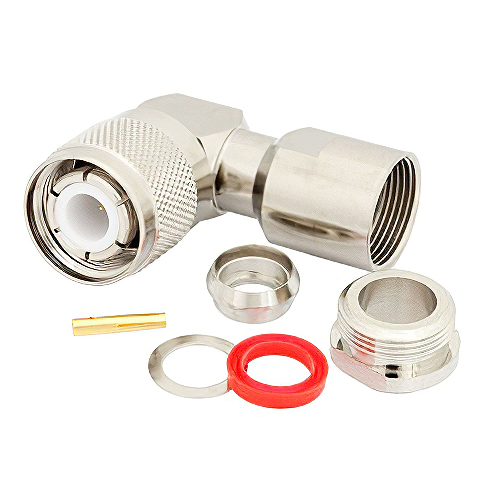

HN Male Connector | Right Angle, Clamp/Solder
Product Description
The PE4182 HN male right angle connector features a clamp/solder attachment for RG213, RG8, RG393, RG225, RG214, RG393, and RG9 coaxial cable. The connector operates up to a maximum frequency of 3 GHz, offers good VSWR of 1.3:1, and has a 50Ω impedance. This HN connector has a brass body with nickel plating and uses brass contact.
Features
- HN male connector
- MIL-STD-348A
- 50Ω impedance
- 3 GHz Max. operating frequency
- VSWR 1.3:1
- Gold-plated brass contact
Specifications
Weight:
0.202 lb (91.63 g)
Dimensions:
1.85 x 0.866 x 1.461 in (46.99 x 22 x 37.11 mm)
Body Geometry:
Right-angle
Connect Interface Types:
RG213, RG8, RG393, RG225, RG214, RG393, RG9
Contacts:
Gold-plated brass contact
Minimum Contact Plating:
30 µ-in
Product Codes
- Mfr Part No:PE4230
- EDMO #:PE4230
- Brand:PASTERNACK
- Category:Electrical Interconnect
