HN Male Connector | Straight, Clamp/Solder
Product Description

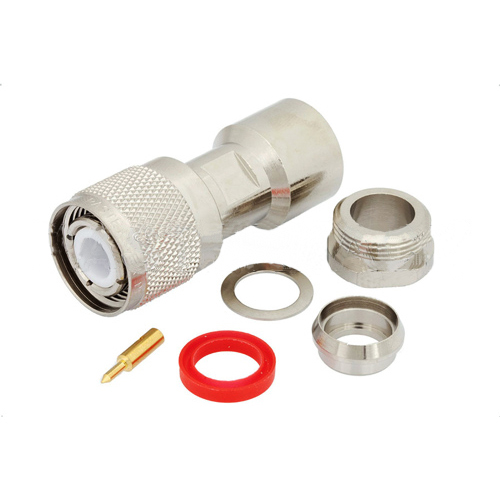

The PE4182 HN male connector features a clamp/solder attachment for RG213, RG214, RG8, RG9, RG225, and RG393 coaxial cable. The connector operates up to a maximum frequency of 6 GHz and offers VSWR of 1.5:1. This HN connector has a brass body with nickel plating and uses brass contact.
Features
- HN male connector
- MIL-STD-348A
- 50Ω impedance
- 6 GHz Max. operating frequency
- VSWR: 1.5:1
- Gold-plated brass contact
Specifications
Weight:
0.171 lb (77.56 g)
Dimensions:
2.23 x 0.866 x 0.171 in (56.64 x 22 x 22 mm)
Body Geometry:
Straight
Connect Interface Types:
RG213, RG214, RG8, RG9, RG225, RG393
Contacts:
Gold-plated brass contact
Minimum Contact Plating:
30 µ-in
Product Codes
- Mfr Part No:PE4182
- EDMO #:PE4182
- Brand:PASTERNACK
- Category:Electrical Interconnect
