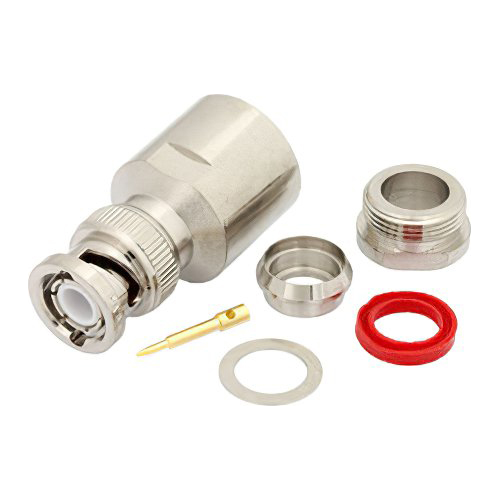

PE4109 BNC Male Connector | 50Ω, Clamp/Solder, Straight
Product Description
The PE4109 BNC male coaxial connector has an interface type of RG8, RG215, RG225, RG214, RG393, RG213 and a 50 Ohm impedance. It uses shield/contact clamp/solder as an attachment method, provides a frequency range of DC to 4 GHz, has a PTFE dielectric type, a VSWR of 1.3, and is REACH compliant. This connector has a brass body with nickel plating and a brass contact with gold plating.
Features
- DC to 4 GHz operating frequency range
- Gold-plated brass contact
- Nickel-plated brass body
- Clamp/Solder Attachment
Specifications
Weight:
0.093 lbs (42.18 g)
Dimensions:
1.65 x 0.75 x 0.75 in (41.91 x 19.05 x 19.05 mm)
Operating Range:
-65°C to 165°C
Polarity:
Standard
Connector:
BNC Male
Impedance:
50Ω
Body Geometry:
Straight
Attachment Method:
Clamp/Solder
Frequency Range:
DC – 4 GHz
Operating Voltage (AC):
500 Vrms
VSWR:
1.3:1 Max
Contact Material:
Gold Plated Brass
Body Material:
Nickel Plated Brass
Product Codes
- Mfr Part No:PE4109
- EDMO #:PE4109
- Brand:PASTERNACK
- Category:Electrical Interconnect
