Right Angle BNC Male Connector | Solder Attachment, 50 Ohm
Product Description

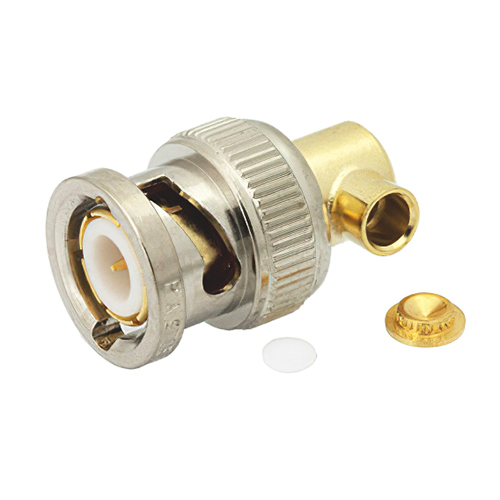

This BNC Male Connector (EDMO# PE4092) has a right angle geometry, a 50Ω impedance, and features a solder attachment. It fits PE-SR402AL, PE-SR402FL, PE-SR402FLJ, PE-SR402TN, RG402 coaxial cables and is MIL-STD-348A standard.
Features
- DC — 4 GHz frequency range
- Gold-plated, brass contact
- 50Ω
- 30 µin minimum contact plating
- General purpose test & custom cable applications
Specifications
Weight:
0.029 lb (13.15 g)
Dimensions:
0.89 x 0.57 in (22.61 x 14.48 mm)
Body Geometry:
Right Angle
Impedance:
50Ω
Connector Type:
BNC Male
Attachment Type:
Solder
Frequency Range:
DC to 4 GHz
VSWR:
1.35:1
Operating Voltage:
500 Vrms
Contact Material:
Gold-plated brass, 30 µ-in
Insulation Material:
PTFE
Body Material:
Gold-plated brass, 100 µ-in
Coupling Nut Material:
Nickel-plated brass, 100 µ-brass
Operating Temperature:
-65°C to 165°C
Product Codes
- Mfr Part No:PE4092
- EDMO #:PE4092
- Brand:PASTERNACK
- Category:Electrical Interconnect
