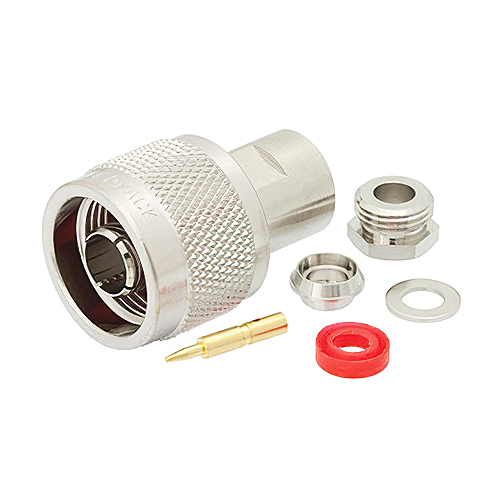

N Male Connector | Straight, Clamp/Solder
Product Description
The PE4081 N male connector features a clamp/solder attachment for RG58, RG55, RG141, RG142, RG223, RG400, RG303, PE-C195, PE-P195, and LMR-195 coaxial cable. The connector operates up to a maximum frequency of 11 GHz and offers VSWR of 1.3:1. This N connector has a brass body with nickel plating and uses brass contact.
Features
- N male connector
- MIL-STD-348A
- 50Ω impedance
- 11 GHz Max. operating frequency
- gold-plated brass contact
Specifications
Weight:
0.075 lb (34.02 g)
Dimensions:
1.35 x 0.83 in (34.29 x 21.08 mm)
Body Geometry:
straight
Connect Interface Types:
RG58, RG55, RG141, RG142, RG223, RG400, RG303, PE-C195, PE-P195, LMR-195
Contacts:
gold-plated brass contact
Minimum Contact Plating:
30 µ-in
Product Codes
- Mfr Part No:PE4081
- EDMO #:PE4081
- Brand:PASTERNACK
- Category:Electrical Interconnect
