TNC Male Straight Connector | 50Ω, Clamp/Solder, RG58, RG55, RG141, RG142, RG223, RG400, RG303, PE-C195, PE-P195, LMR-195
Product Description

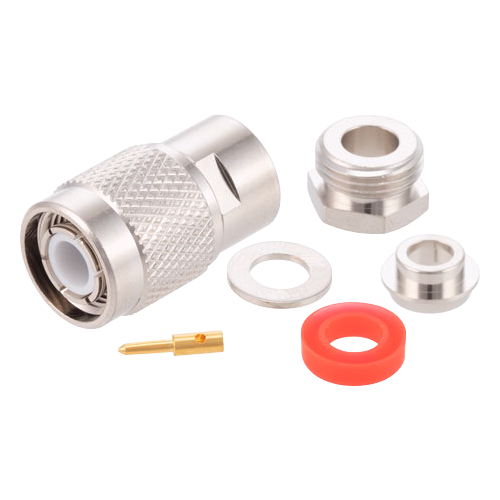

The PE4067 TNC male coaxial connector has an interface type of RG58, RG55, RG141, RG142, RG223, RG400, RG303, PE-C195, PE-P195, LMR-195 and a 50 Ohm impedance. It uses a shield/contact clamp/solder as an attachment method and features a frequency range of DC to 6 GHz.
This Pasternack TNC male coaxial connector has a PTFE dielectric type, VSWR of 1.5, brass body with nickel plating, brass contact, and is RoHS and REACH compliant.
Features
TNC male straight connector
50 ohm
1.5:1 VSWR
Interfaces with RG58, RG55, RG141, RG142, RG223, RG400, RG303, PE-C195, PE-P195, and LMR-195 coaxial cables
Clamp/Solder attachment method
Specifications
Weight:
0.046 lb (20.87 g)
Dimensions:
1.06 x 0.571 in (26.92 x 14.50 mm)
Connector Type:
TNC Male
Body Geometry:
Straight
Impedance:
50Ω
Frequency:
DC to 6 GHz
VSWR:
1.5:1
Operating Voltage:
500 Vrms
Contact:
Gold-plated brass
Insulation:
PTFE
Body Material:
Nickel-plated brass
Coupling Nut:
Nickel-plated brass
Temperature:
-65°C to 165°C
Product Codes
- Mfr Part No:PE4067
- EDMO #:PE4067
- Brand:PASTERNACK
- Category:Electrical Interconnect
- SCHEDULE B CODE:8536.69.4010
- SCHEDULE B CODE:8536.69.4010
