TNC 4-hole Flange Terminal Connector | Solder Cup Attachment
Product Description

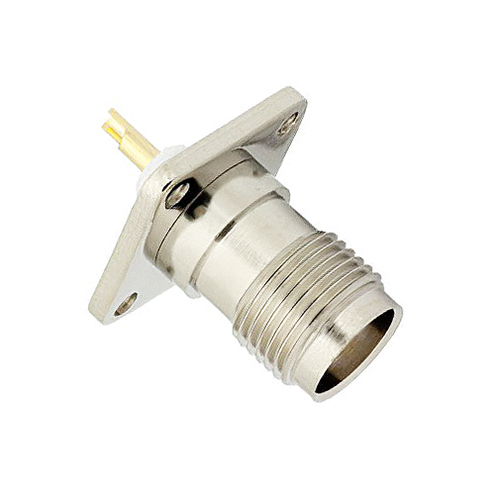

The PE4064 TNC female terminal connector features a solder cup interface, 50Ω impedance, and operates up to a maximum frequency of 11 GHz. The 4-hole flange connector utilizes a shield/contact solder as an attachment method.
Features
- TNC female connector
- 50Ω impedance
- DC to 11 GHz frequency range
- 4-hole flange mounting method
- RoHS compliant
Specifications
Weight:
0.013 lb (5.9 g)
Dimensions:
1.06 x 0.69 x 0.69 in (26.92 x 17.53 x 17. 53 mm)
Connector Type:
TNC female
Impedance:
50Ω
Frequency Range:
DC – 11 GHz
Body Style:
straight:
Attachment Method:
solder
Mount Method:
4-hole flange
Product Codes
- Mfr Part No:PE4064
- EDMO #:PE4064
- Brand:PASTERNACK
- Category:Electrical Interconnect
