Right Angle BNC Male Connector | Crimp/Solder Attachment, 50 Ohm
Product Description

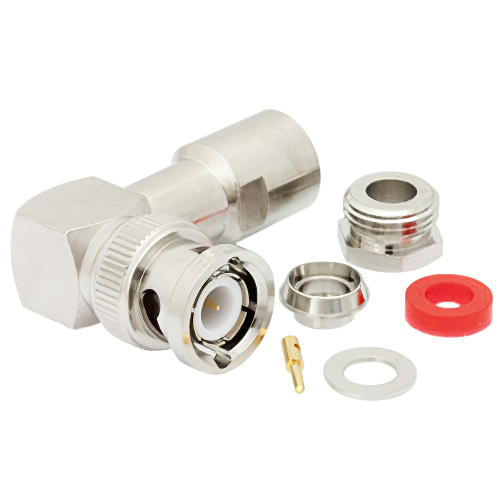

This BNC Male Connector (EDMO# PE4053) has a right angle geometry, a 50Ω impedance, and features a crimp/solder attachment. It fits RG58, RG55, RG141, RG142, RG223, RG400, RG303, PE-C195, PE-P195, LMR-195 and is MIL-STD-348A standard.
Features
- 1 GHz maximum operating frequency
- Gold plated, brass contact
- 30 µ-inch minimum plating
- Good VSWR @ 1.5:1
Specifications
Weight:
0.077 lb (34.93 g)
Dimensions:
1.453 x 0.571 x 1.102 in (36.91 x 14.5 x 27.99 mm)
Body Geometry:
Right Angle
Impedance:
50Ω
Connector Type:
BNC Male
Attachment Type:
Crimp Solder
Frequency Range:
DC to 1,000 MHz
VSWR:
1.5:1
Operating Voltage:
500 Vrms
Contact Material:
Gold-plated brass, 30 µ-in
Insulation Material:
PTFE
Body Material:
Nickel-plated brass, 100 µ-in
Coupling Nut Material:
Nickel-plated brass, 100 µ-brass
Operating Temperature:
-65°C to 165°C
Product Codes
- Mfr Part No:PE4053
- EDMO #:PE4053
- Brand:PASTERNACK
- Category:Wire, Cable & Accessories
