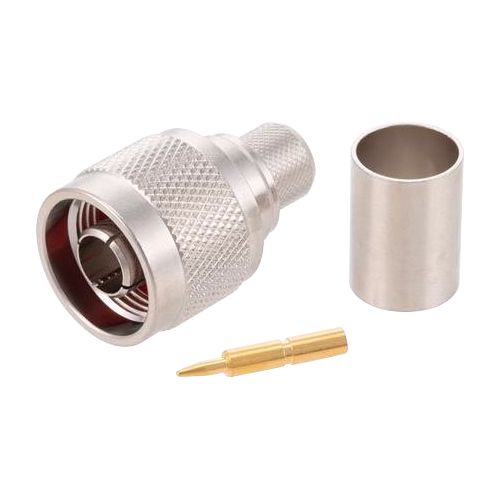

N Male Straight Connector | 50Ω, Clamp/Solder, RG214, RG9, RG225, RG393

PE4048

PASTERNACK

CALL FOR PRICING
Special order
EDMO#PE4048
MFR#PE4048

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The PE4048 type N male connector features a crimp/solder attachment for RG214, RG9, RG225, and RG393 coaxial cables. This connector operates up to a maximum frequency of 11 GHz and offers good VSWR of 1.5:1.

Features

  • N male straight connector

  • 50 ohm

  • 1.5:1 VSWR

  • Interfaces with RG214, RG9, RG225, and RG393 coaxial cables

  • Crimp/Solder attachment method

Specifications

Weight:
0.072 lb (20.87 g)

Dimensions:
1.583 x 0.79 in (40.21 x 20.07 mm)

Connector Type:
N Male

Body Geometry:
Straight

Impedance:
50Ω

Frequency:
DC to 11 GHz

VSWR:
1.5:1

Operating Voltage:
1000 Vrms

Contact:
Gold-plated brass

Insulation:
PTFE

Body Material:
Nickel-plated brass

Coupling Nut:
Nickel-plated brass

Temperature:
-65°C to 165°C

Product Codes

  • Mfr Part No:PE4048
  • EDMO #:PE4048
  • Brand:PASTERNACK
  • Category:Electrical Interconnect
  • SCHEDULE B CODE:8536.69.4010
