PE4042 N Straight Male Connector | 50Ω, Crimp/Crimp, RG55, RG141, RG142, RG223, RG400

PE4042

PASTERNACK

CALL FOR PRICING
In Stock
EDMO#PE4042
MFR#PE4042

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

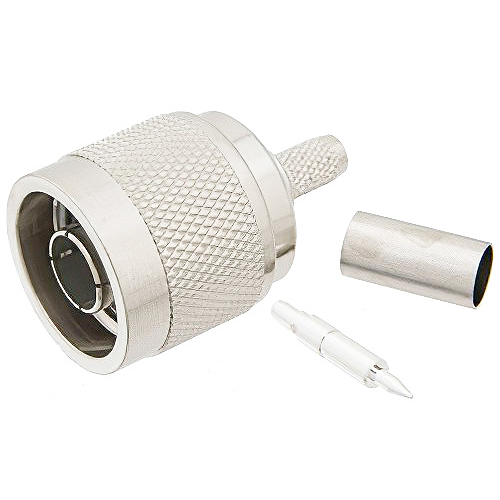

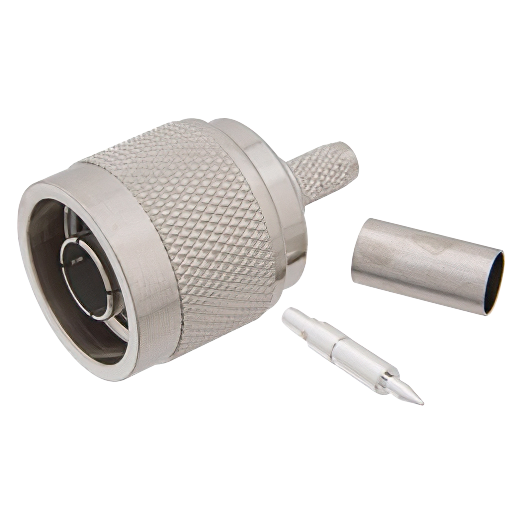

The PE4042 type N male coaxial connector has an interface type of RG55, RG141, RG142, RG223, RG400 and a 50 Ohm impedance. It uses shield/contact crimp/crimp as an attachment method and provides a frequency range of DC to 12.4 GHz. This coaxial connector has a PTFE dielectric type with a nickel-plated brass body and brass contact. It is RoHS and REACH compliant.

Features

  • N male connector
  • MIL-STD-348
  • 50Ω impedance
  • 12.4 GHz Max. operating frequency
  • Silver-plated brass contact

Specifications

Weight:
0.072 lb (32.66 g)

Dimensions:
1.43 x 0.812 in (36.32 x 20.32 mm)

Body Geometry:
Straight

Connect Interface Types:
RG55, RG141, RG142, RG223, RG400

Contacts:
Silver-plated brass contact

Contact Plating:
ASTM-B700

Product Codes

  • Mfr Part No:PE4042
  • EDMO #:PE4042
  • Brand:PASTERNACK
  • Category:Electrical Interconnect
  • ECCN:EAR99
  • SCHEDULE B CODE:8536.69.4010
