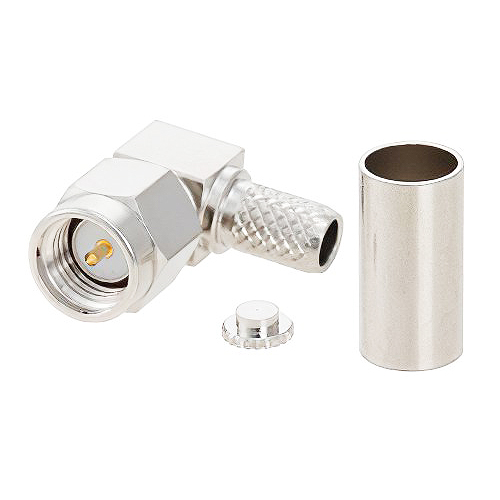

PE4002 SMA Male Connector | Right Angle, Crimp/Solder
Product Description
The PE4002 SMA male right angle connector features a crimp/solder attachment for RG55, RG142, RG223, RG400, and RG141 coaxial cable. The connector operates up to a maximum frequency of 12.4 GHz and offers VSWR of 1.23:1. This SMA connector has a brass body with nickel plating and uses brass contact.
Features
- SMA male connector
- MIL-STD-348A
- 50Ω impedance
- 12.4 GHz Max. operating frequency
- VSWR 1.23:1
- Gold-plated brass contact
Specifications
Weight:
0.019 lb (8.62 g)
Dimensions:
0.762 x 0.315 x 0.65 in (19.35 x 8 x 16.51 mm)
Body Geometry:
Right angle
Connect Interface Types:
RG55, RG142, RG223, RG400, RG141
Contacts:
Gold-plated brass contact
Minimum Contact Plating:
50 µ-in
Product Codes
- Mfr Part No:PE4002
- EDMO #:PE4002
- Brand:PASTERNACK
- Category:Electrical Interconnect
