Power Supply | For Barfield 1811HA Pitot-Static Test Set
Product Description

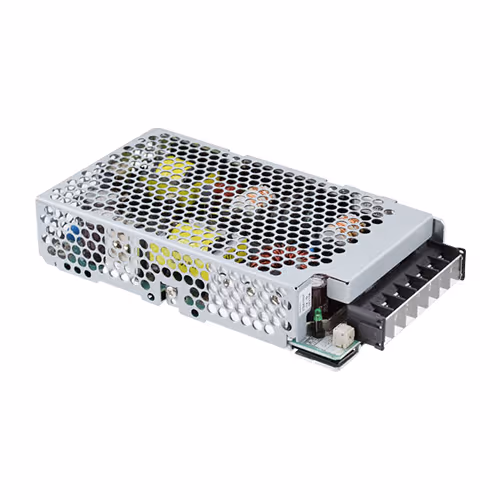

The PBA150F-24-N Power Supply (EDMO# PBA150F-24), used in the Barfield 1811HA pitot-static test set, is an AC-DC power supply that delivers 24V at 6.3A with a 150W power rating. Designed for reliable performance in industrial environments, it supports a universal input voltage range of 85-264V AC, making it adaptable for global power systems. Its compact size, high efficiency, and built-in protection features, such as overcurrent, overvoltage, and thermal protection, ensure safe operation during critical testing and calibration procedures on aircraft systems.
Features
- Delivers 24V output with 91% efficiency, ensuring reliable power with minimal energy loss
- Lightweight and small, allowing for easy integration
- Operates with an input of 85 – 264V AC, ensuring compatibility with various power systems
- Equipped with overcurrent, overvoltage, and thermal protection
- Reliable passive cooling system for continuous operation without forced air
Specifications
Weight:
1.4 lbs
Dimensions:
3.23 x 1.42 x 6.3 inches
Output Voltage:
24V
Output Power:
150W
Input Voltage Range:
85-264V AC
Efficiency:
91%
Current:
6.3A
Operating Temperature:
-10°C to 70°C
Cooling Method:
Convection-cooled
Regulatory Approvals:
UL, CE, TUV
Product Codes
- Mfr Part No:PBA150F-24-N
- EDMO #:PBA150F-24
- Brand:BARFIELD
- Category:Auxiliary Power Units & Battery Chargers
