Auxiliary Power Supply | 28V, 100A, 220V, 60Hz, Piper & Cessna Plugs
Product Description

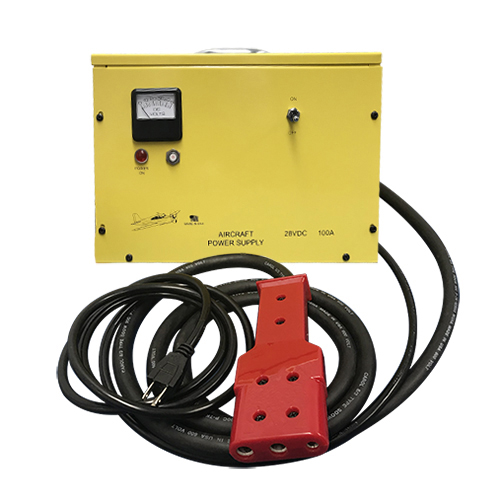

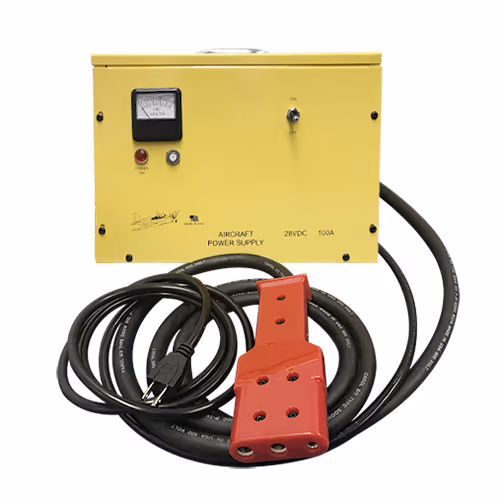

The P-28100 APU provides the amps necessary for gear retraction tests as well as the filtered power for all types of avionics service. The P-28100 supplies up to 100 amps at 28 VDC for commercial aircrafts. It plugs into the APU connector on the engine cowling and automatically disconnects the battery so that it will not be drained by the servicing processes.
Version (EDMO# P28100P) is designed as a power supply only unit with 28 volt output, 100 amps, 220 volt input, 60Hz frequency, and Includes Piper & Cessna plugs.
Features
- 50ft Piper and Cessna plug connector
- 100 amperes filtered 28 volt supply
- Operates from 220 VAC, 60 Hz
- 8 foot DC cable furnished
- Ferro-resonant regulated supply
- DC current limited
- Front panel meter, controls
- Portable, weighs only 64 lb
- Extensive testing by FBO's
Specifications
Weight:
62 lb
Dimensions:
13 x 9 x 10 in.
Input voltage:
220VAC
AC input amperage:
35A
Input frequency:
60Hz
Output voltage:
28VDC
DC output amperage:
100A
Output wattage:
2800W
Product Codes
- Mfr Part No:P-28100/P 50 FT CORD
- EDMO #:P28100P
- Brand:DB ASSEMBLY, INC
- Category:Auxiliary Power Units & Battery Chargers
