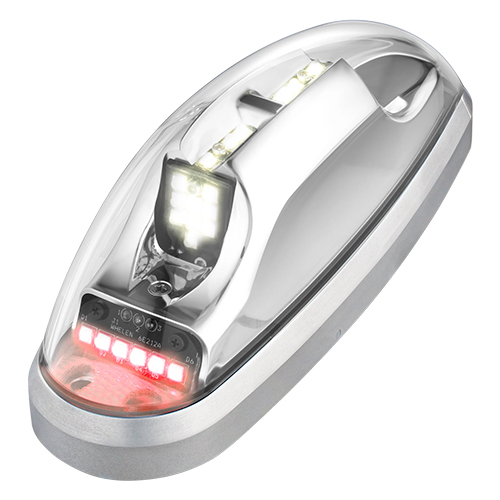

Orion 600 LED Position/Anti-Collision Light | 28 VDC, Red

Product Description

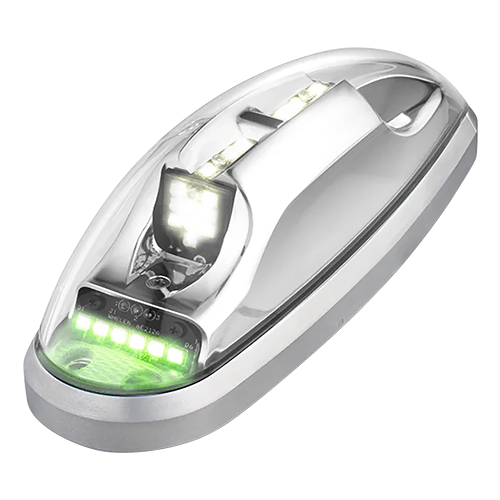

The Orion™ 600 series lights feature a red or green forward position light, a white flashing anti-collision light, and a tail position light function. The integrated tail position light fulfills all FAA requirements, eliminating the necessity for an additional tail-mounted position light. These products utilize state-of-the-art LED circuitry, removing the need for separate flasher boxes during operation. The footprint and mounting specifications match those of legacy Whelen products, ensuring effortless installation and retrofitting. They have obtained full FAA/TSO approval, guaranteeing compliance with aviation standards.

This Orion 600 light (EDMO# OR6002R) has a 28 VDC current draw and red forward position light.

Specifications

• Weight:
  0.5 lb
• Dimensions:
  5.65 x 1.78 x 2.04 in
• Voltage:
  28 VDC
• Current Draw:
  Position Light: 0.17 A Anti-Collision Light: 0.5 A (Average) Peak: 2.6 A
• Position LED Color:
  Aviation Red
• Anti-Collision LED Color:
  Aviation White
• Lens:
  Clear Hard-coated Polycarbonate

Product Codes

• Mfr Part No
  01-0771733-12
• ECCN
  EAR99
• SCHEDULE B CODE
  8541.40.2000
