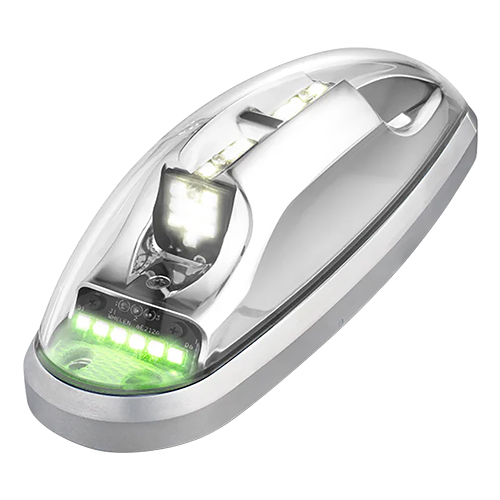

Orion 600 LED Position/Anti-Collision Light | 14 VDC, Green

Product Description
The Orion™ 600 series lights feature a red or green forward position light, a white flashing anti-collision light, and a tail position light function. The integrated tail position light fulfills all FAA requirements, eliminating the necessity for an additional tail-mounted position light. These products utilize state-of-the-art LED circuitry, removing the need for separate flasher boxes during operation. The footprint and mounting specifications match those of legacy Whelen products, ensuring effortless installation and retrofitting. They have obtained full FAA/TSO approval, guaranteeing compliance with aviation standards.
This Orion 600 light (EDMO# OR6001G) has a 14 VDC current draw and green forward position light.
Features
- 14 VDC current draw
- Green forward position light
- Wingtip mounted
Specifications
Weight:
0.5 lb
Dimensions:
5.65 x 1.78 x 2.04 in
Voltage:
14 VDC
Current Draw:
Position Light: 0.48 A
Anti-Collision Light: 1.0 A (Average)
Peak: 5.2 A
Position LED Color:
Aviation Green
Anti-Collision LED Color:
Aviation White
Lens:
Clear Hard-coated Polycarbonate
Product Codes
- Mfr Part No:01-0771733-01
- EDMO #:OR6001G
- Brand:WHELEN ENGINEERING
- Category:Electrical & Lighting
