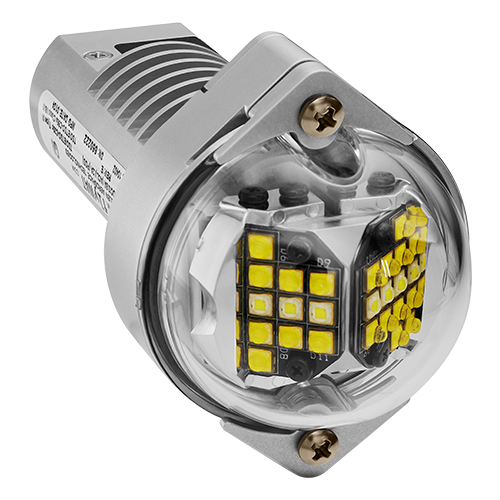

Orion 500 Series Position & Anti-Collision Light | 14 VDC, Vertical Tail Mount

OR5001V

WHELEN ENGINEERING

CALL FOR PRICING
In Stock
EDMO#OR5001V
MFR#01-0771774V01

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The Orion 500 Series products incorporate both the white flashing anti-collision light, and the tail position light functions. State of the art LED circuitry is built in to eliminate the need for separate flasher boxes for operation. The footprint, and mounting, are identical to legacy Whelen products for ease of installation and retrofit. Fully FAA/TSO and STC approved.

Features

  • Dual-function LED lighting
  • Integrated flasher circuitry
  • Drop-in replacement for legacy Whelen products
  • FAA/TSO and STC approved

Specifications

Weight:
0.29 lbs

Dimensions:
3.72 x 1.67 x 2.20 in

Current Draw:
Position Light: 0.30 Amps
Anti-Collision Light: 0.70 Amps (Average)
3.8 Amps (Peaks)

Lense:
Clear Hardcoated Polycarbonate

Product Codes

  • Mfr Part No:01-0771774V01
  • EDMO #:OR5001V
  • Brand:WHELEN ENGINEERING
  • Category:Electrical & Lighting
