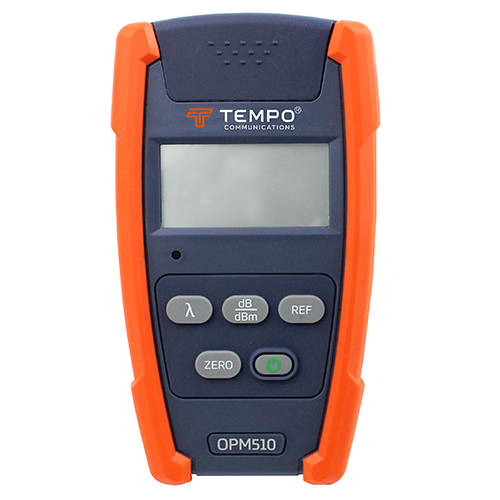

OPM510 Optical Power Meter | -65 to +10dBm Range
Product Description
The OPM510 standard optical power meter is designed for the Telco and MRO industries for reading both absolute and reference power measurements to ensure fast and accurate loss budget and insertion loss measurements. This optical power meter is certified for IP54-compliance with a rugged construction for providing users confidence whether testing in either single- or multi-mode networks.
This optical power meter (EDMO# OPM510) operates within -65dBm and +10dBm.
Features
- Standard and High Power Optical Power Meters
- Measure Optical Power
- Accurate Insertion Loss Measurements
- Tone and Probe Fiber Networks at 270Hz, 1kHz and 2kHz
- Absolute or Referenced Optical Power Measurements
- InGaAs detector for Maximum Sensitivity
- Calibrated Wavelengths 850nm, 1300nm, 1310nm, 1490nm, 1550nm & 1625nm
- SC, LC, FC and ST Interchangeable Bulkheads
- Ruggedized Package, IP54 compliant
- Compatible with Single-mode and Multi-mode Networks
- Auto Off or Continuous On Operation
- Battery or 120/240VAC Operation
Specifications
Weight:
0.68lbs (300g)
Dimensions:
6.1 x 3.5 x 1.3 in (155 x 88 x 33 mm)
Calibrated Wave Lengths:
850, 1,300, 1,490, 1,550, 1,625
Measuring Range:
-65 to +10dBm
Detector Type:
InGaAs
Accuracy:
±0.25dB (±0.5dB @ 850nm)
Linearity:
±0.5dB (+10 to -3dBm)
±0.1dB (-3 to -50dBm)
±0.5dB (-50 to -65dBm)
Resolution:
0.01dB
Functions:
µW/dBm/dB(REF)/ Mod Tone Detect 270Hz, 1kHz, 2kHz
Connector Type:
SC/PC (Interchangeable LC, ST, SC)
Fiber Type:
Single mode & Multi mode
Battery Life:
> 100 Hours
Power Supply:
9V Alkaline or 1000 mAh Lithium Battery/ 9V AC adapter
Temperature Range:
-10°C – 50°C, operational
-20°C – 70°C, storage
Relative Humidity:
0 – 95% (non condensing)
IP Rating:
IP54
Vibration:
5Hz – 150Hz, Amplitude +0.15 mm
Shock:
Peak acceleration 25g at a pulse duration of 6ms
Compliance:
CE, FCC
Product Codes
- Mfr Part No:OPM510
- EDMO #:OPM510
- Brand:TEMPO COMMUNICATIONS
- Category:Fiber Optic Inspection
