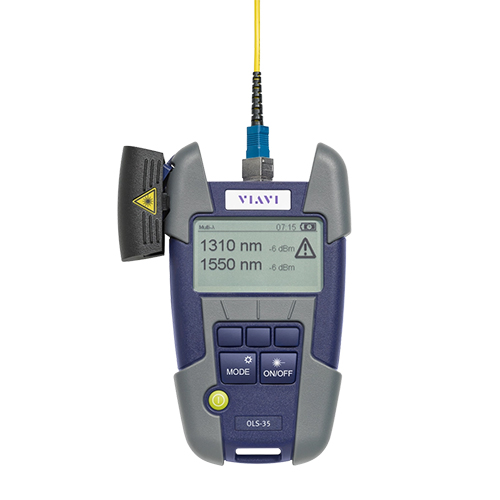

OLS-35V2 SmartPocket V2 Optical Light Source
Product Description
The OLS-3xV2 series consists of small and rugged optical light sources (OLS) for quick, easy, and convenient field insertion loss measurement and continuity checks. SmartPocket V2 OLS are ideal tools to complement the OLP-3xV2 optical power meters for insertion loss and continuity testing in both multimode and single mode optical fiber networks. They offer a dedicated and cost-optimized solution for testing and troubleshooting optical fibers in the field. All SmartPocket V2 sources are equipped with Auto-λ and Multi-λ functions compatible with any SmartPocket V2 power meter. This one button operation provides a quick, simple, and error-free testing solution, which makes SmartPocket V2 OLS the ideal tools for daily field testing.
This version (EDMO# OLS-35V2) covers all standard dual wavelength single mode telecommunication network applications with 1310 / 1550 nm.
Features
- Combines up to 4 wavelengths in one instrument (SM + MM)
- Fiber Tracing – generating light source tone(s)
- Cost-effective and compact optical light sources
- Switchable optical adapter versions available for maximum flexibility
Specifications
Weight:
0.45 lb (200 g)
Dimensions:
1.2 x 3.1 x 5.9 in (30 x 80 x 150 mm)
Operating Temperature:
14°F to 131°F (-10°C to 55°C)
Storage Temperature:
-4°F to 158°F (-20°C to 70°C)
Max. Altitude:
6,500 ft (2,000 m)
Humidity:
15 to 85 % (Relative) up to 31°C
20 g/m3 (Absolute) > 31°C
Polution Degree:
2
Ingress Protection:
IP44
Light Source Wavelengths:
1310, 1550 nm
Light Source Output Power (CW):
-3 dBm (Typical)
Optical Power Meter Power Range:
-65 to 10 dBm
Product Codes
- Mfr Part No:OLS-35V2
- EDMO #:OLS-35V2
- Brand:VIAVI
- Category:Fiber Optic Inspection
