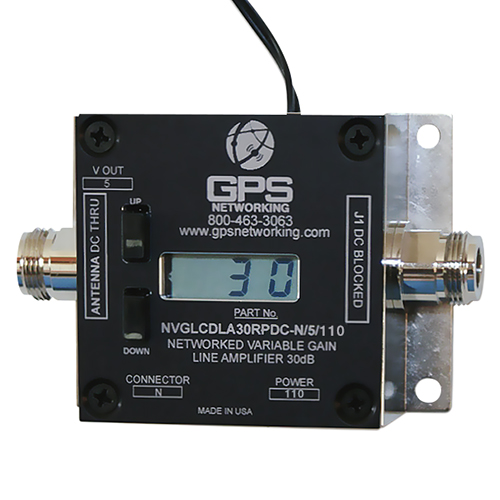

Network Variable Gain GPS Line Amplifier | 30 dB Gain with LCD, N connector, 15V Output, 110VAC
Product Description
This variable gain GPS line amplifier features up to 30 dB of gain and an easy-to-use LCD display. This line amplifier is a one input and one output device that is optimized for GPS applications. The amount of gain can be changed using the control buttons, and the amount of gain is displayed on the LCD display. In the standard configuration, port J1 accepts DC voltage from a connected GPS receiver. This voltage is passed through to power an active antenna or other upstream device. In a networked (externally power) configuration, the output port (J1) is DC blocked, and a customer-defined output voltage is provided via the antenna port.
This variable gain GPS line amplifier (EDMO# NVGLCDLA30) uses N connectors, 15-volt output voltage, and 110 VAC source voltage.
Features
- Customizable variable gain amplifier: gain from 0 dB to 30 dB
- Easy-to-use buttons and LCD display
- Wide accepted frequency range: covers entire L-band & major GNSS constellations
Specifications
Weight:
9.7 oz (275 g) max.
Dimensions:
1.27 x 3.26 x 2.5 in (not including connectors)
Operating Temperature:
-57°C to 87°C
Frequency Range:
1.1 GHz — 1.7 GHz
Characteristic Impedance:
50Ω
Reverse Isolation:
-60 dB, typical
Req. DC Input V.:
3.3 VDC — 15 VDC
Current Draw:
42 mA
Minimum Gain:
-1 dB 1 dB
Maximum Gain:
29 to 31 dB (30 dB, typical)
Input SWR:
2.0:1
Output SWR:
2.0:1
Noise Figure (Minimum Gain):
L1: 4.4 dB
L2: 6.25 dB
Noise Figure (Maxmium Gain):
L1: 1.9 dB
L2: 4.66 dB
Band Gain Flatness:
0.5 dB, typical (1.0 dB, max.)
Input P1dB:
-22.9 dBm
3rd Order Intercept:
-14 dBm
Source Voltage Option:
110 VAC, Transformer (ITA Type A Wall Mount)
Output Voltage Option:
15V @ 180 mA
Connector Option:
N type
Product Codes
- Mfr Part No:NVGLCDLA30RPDC-N/51/10
- EDMO #:NVGLCDLA30
- Brand:GPS NETWORKING
- Category:GPS Components & Accessories
