Network Variable Gain GPS Line Amplifier | 30 dB Gain with LCD, SMA connector, 15V Output, 9VDC to 32VDC

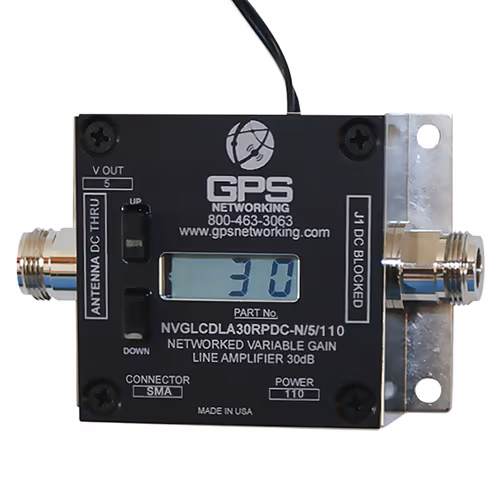

GPS VARIABLE GAIN LINE AMPLIFIER/With SMA connector and external power supply networking.

Product Description

This variable gain GPS line amplifier features up to 30 dB of gain and an easy-to-use LCD display. This line amplifier is a one input and one output device that is optimized for GPS applications. The amount of gain can be changed using the control buttons, and the amount of gain is displayed on the LCD display. In the standard configuration, port J1 accepts DC voltage from a connected GPS receiver. This voltage is passed through to power an active antenna or other upstream device. In a networked (externally power) configuration, the output port (J1) is DC blocked, and a customer-defined output voltage is provided via the antenna port.

This variable gain GPS line amplifier (EDMO# NVGLCDL30-) uses SMA connectors, 15-volt output voltage, and 9VDC to 32VDC customer supplied power source with a two-pin MIL-DTL-5015 10SL connector.

Features

Customizable variable gain amplifier: gain from 0 dB to 30 dB
Easy-to-use buttons and LCD display
Wide accepted frequency range: covers entire L-band & major GNSS constellations

Specifications

Weight:
9.7 oz (275 g) max.

Dimensions:
1.27 x 3.26 x 2.5 in (not including connectors)

Operating Temperature:
-57°C to 87°C

Frequency Range:
1.1 GHz — 1.7 GHz

Characteristic Impedance:
50Ω

Reverse Isolation:
-60 dB, typical

Req. DC Input V.:
3.3 VDC — 15 VDC

Current Draw:
42 mA

Minimum Gain:
-1 dB 1 dB

Maximum Gain:
29 to 31 dB (30 dB, typical)

Input SWR:
2.0:1

Output SWR:
2.0:1

Noise Figure (Minimum Gain):
L1: 4.4 dB
L2: 6.25 dB

Noise Figure (Maxmium Gain):
L1: 1.9 dB
L2: 4.66 dB

Band Gain Flatness:
0.5 dB, typical (1.0 dB, max.)

Input P1dB:
-22.9 dBm

3rd Order Intercept:
-14 dBm

Source Voltage Option:
9 VDC — 32 VDC [customer supplied] MIL-DTL-5015 10SL Two-Pin DC Connector (Includes Mate)

Output Voltage Option:
15V @ 180 mA

Connector Option:
SMA type

Product Codes

Mfr Part No:NVGLCDLA30RPDC-S/5/MC
EDMO #:NVGLCDL30-
Brand:GPS NETWORKING
Category:GPS Components & Accessories
