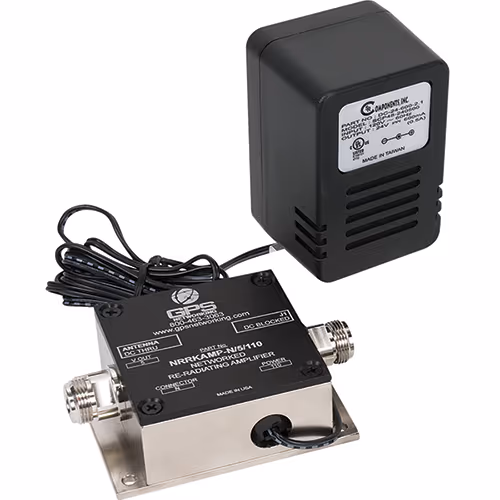

Networked Re-Radiating GPS Amplifier | N Connector, 110VAC Source Voltage, 5V Output
Product Description
This GPS re-radiating amplifier is designed for deployments where an L1 antenna is already installed. The GPS amplifiers boosts L1 frequencies to inside spaces. In standard networked configuration, the re-radiating amplifier output port J1 is DC block while the antenna port receives RF and passes voltage upstream to power other devices such as an active antenna.
This networked GPS amplifier (EDMO# NRRKAMP) features N connectors, a 110-volt input power, and 5-volt output. Re-radiating amplifier unit with external power supply only.
Features
- GPS re-radiating amplifier with external power supply: 30 dB gain
- Optional mounting kit hardware available
Specifications
Weight:
9.9 oz
Dimensions:
1.25 x 3.26 x 2.5 in, max. (not including connectors)
Operating Temperatures:
-57°C to 87°C
Frequency Range:
1.1 GHz — 1.7 GHz
Characteristic Impedance:
50Ω
Req. DC Input V.:
3.3 VDC — 15 VDC
Current Draw:
36 mA, typical (40 mA, max.)
Gain:
29 dB — 31 dB (30 dB, typical)
Input SWR:
2.0:1, max.
Output SWR:
1.8:1, max.
Noise Figure:
L1: 2.0 dB
L2: 4.25 dB
Band Gain Flatness:
0.5 dB, typical (1 dB, max.)
Group Delay:
L1: 1.5 ns
L2: 2.1 ns
Reverse Isolation:
L1: -55 dB
L2: -60 dB
Input P1dB:
L1: -21.5 dBm
L2: -23 dBm
3rd Order Intercept:
-13 dBm
Source Voltage Option:
110VAC Transformer (ITA Type A Wall Mount)
Output Voltage Option:
5V @ 130 mA
Connector Option:
N-type connector
Product Codes
- Mfr Part No:NRRKAMP-N
- EDMO #:NRRKAMP
- Brand:GPS NETWORKING
