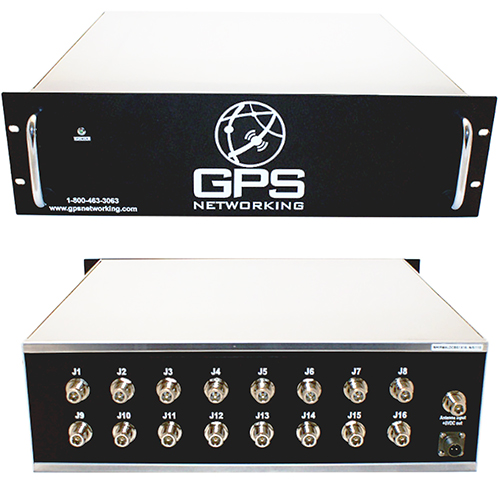

Networked Amplified Rack Mounted GPS Splitter | 1 Input, 16 Outputs, N Connectors
Product Description
This networked rack mounted amplified loaded DC blocked splitter features one input and sixteen outputs for splitting RF frequencies from 1.1 GHz — 1.7 GHz and fit in to a standard server rack. This GPS splitter is designed to amplify and split signals within the L-band spectrum to multiple devices from a single antenna. In the standard configuration, the J1 port passes DC voltage from a connected device to the antenna or anther device up from the splitter. The other ports (J2 — J16) are DC blocked and loaded with 200Ω resistors to simulate antenna current draw preventing antenna alarm faults.
This networked amplified rack mounted GPS splitter (EDMO# NRMALDCBS) features one input and sixteen outputs, has N connectors, 5-volt output, and 110-volt source voltage.
Features
- Excellent amplitude balance: <1 dB variation between ports
- Flat group delay: 1 ns variation between L1 & L2
- High gain output: 14.0 dB typical across operating frequency
- Wide accepted frequency range: covering entire L-Band & major GNSS constellations
- Efficiently blocked ports: 200Ω resistor prevents antenna alarm faults
- LED power light
- -48 VDC power option available
- Durable rugged standard 3U chassis
Specifications
Weight:
10.8 lb (4.90 kg) max.
Dimensions:
17.17 x 17.03 x 5.25 in
Operating Frequency:
-57°C to 87°C
Frequency Range:
1.1 GHz — 1.7 GHz
Characteristic Impedance:
50Ω
Req. DC Input V.:
3.3 VDC — 15 VDC
Current Draw:
76 mA
Gain:
13 dB — 15 dB (14 dB, typical)
High Isolation Gain:
-2.0 dB — 2.0 dB (0.0 dB, typical)
Input SWR:
1.5:1
Output SWR:
1.5:1
Gain Flatness:
0.5 dB, typical (1.0 dB, max.)
Amplitude Balance:
1.0 dB, max.
Isolation:
L1: 17 dB, typical (76 dB, max.)
L2: 12 dB, typical (71 dB, max.)
Group Delay Flatness:
1 ns, typical
Input P1dB:
-23.5 dBm
Source Voltage Option:
110 VAC (Transformer (ITA Type A Wall Mount)
Output Voltage Option:
5V @ 130 mA
Connector Option:
N type connector
Product Codes
- Mfr Part No:NRMALDCBSIX
- EDMO #:NRMALDCBS
- Brand:GPS NETWORKING
- Category:GPS Components & Accessories
