Networked Amplified Rack Mounted GPS Splitter | 1 Input, 8 Outputs, N Connectors
Product Description
This rack mounted amplified loaded DC blocked GPS splitter features one input and eight outputs for splitting RF frequencies from 1.1 GHz — 1.7 GHz and fits in a standard server rack. This GPS splitter is designed to amplify and split signals within the L-band spectrum to multiple devices from a single antenna. In the standard configuration, the J1 port passes DC voltage from a connected device to the antenna or anther device up from the splitter. The other ports (J2 — J8) are DC blocked and loaded with 200Ω resistors to simulate antenna current draw preventing antenna alarm faults.

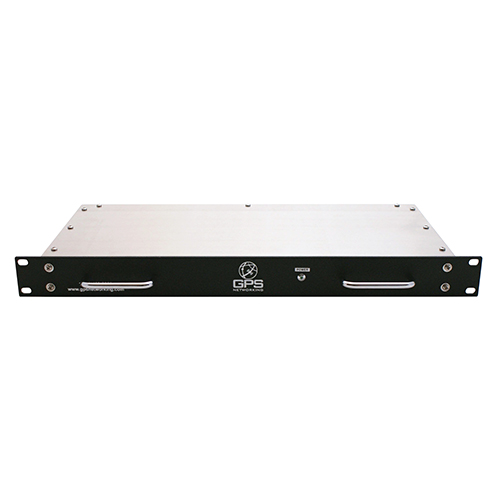

This networked rack mounted amplified GPS splitter (EDMO# NRMALDCB8N) features one input and 8 outputs, and has N connectors.
Features
- Excellent amplitude balance: < 1 dB variation between ports
- Flat group delay: < 1 dB variation between L1 & L2
- High output gain: 14 dB typical across all operating frequencies
- Wide accepting frequency range: covers entire L-band & major GNSS constellations
- Efficiently blocked ports: 200Ω resistor prevent antenna alarm faults
- LED power light
- 48 VDC option available
- Durable standard 1U chassis
Specifications
Weight:
4.4 lb
Dimensions:
1.8 x 8 x 17 in
Temperature:
-40°C to 75°C, operating
Output Port Isolation:
Standard Isolation 20 dB, typical
High isolation 35 dB, minimum
Pass/Block DC Options:
DC blocked (with any external power option)
RF Connector Options:
N, TNC, SMA, BNC (no charge)
Frequency Range:
1.1 GHz – 1.7 GHz
Input/Output Impedance:
50Ω
Gain:
3.0 – 5.5 dB (4.0 dB typical), high isolation
SWR (all ports):
2.0:1, input
1.5:1, output
Gain Flatness:
L1 – L2: 1.0 dB (typical), 1.5 dB (maximum)
Isolation (all ports):
high isolation: 35 dB (typical), 40 dB (maximum)
Group Delay Flatness:
3 ns
Current:
15 mA, amplifier current draw (all ports)
Product Codes
- Mfr Part No:NRMALDCBS1X8-N/0/MC
- EDMO #:NRMALDCB8N
- Brand:GPS NETWORKING
- Category:GPS Components & Accessories
