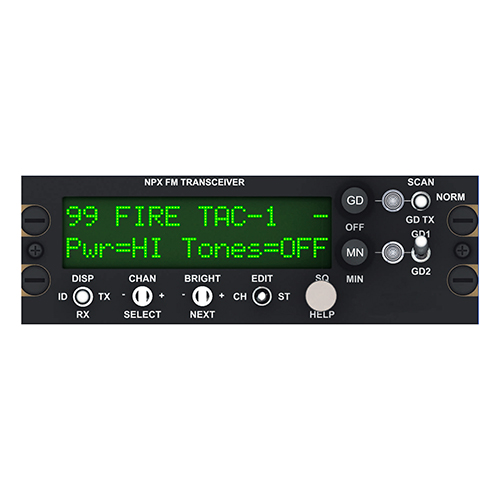

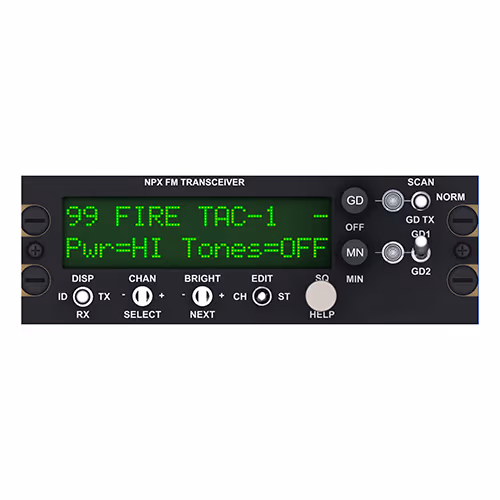

NPX138N Panel-Mount FM Transceiver | Multimode, Synth Guard Receiver, Narrow Band, NVG
Product Description
The NPX138N Series Narrowband VHF-FM Panel-Mount Transceiver was specifically designed to fulfill USFS contract required functionality. The synthesized frequency-agile transceiver allows easy access to all pre-programmed channels and the ability to modify or add channels on the fly. The lightweight state-of-the-art compact design is perfect for the space and weight-restricted environment of a helicopter or light fixed-wing aircraft as a stand-alone unit for the single mission user.
Version (EDMO# NPX138N900) has a 5VDC night vision goggle (NVG) compatible lighting.
Features
- Wideband / Narrowband Capable
- 100 memory channels
- Stores CTCSS tone, transmit frequency with CTCSS tone, scan function and an alpha-numeric identifier
- 32 character LED display
- Front panel selectable transmit power of 1 to 10 watts
- Compact Size and Weight
- Optional Synthesized 2 Channel Guard Receiver
- Low Power Consumption
- Modular Construction
- Multiple Scan Modes
- Ease of Operation
- Low Cost
- Agile Operation
Specifications
Weight:
3lb
Temperature:
-30°C to 60°C
Cooling:
Thermostat controlled internal fan
Remote Interface:
RS232C serial data
Channel Increments:
5 kHz / 6.25 kHz
Tone Capability:
38 CTCSS tones 67.0 Hz – 250.3 Hz
Operating Mode:
F3E simplex or semi-duplex
Audio Output:
100 mW/600Ω (balanced/unbalanced)
Microphone:
Amplified dynamic or equivalent
Sidetone:
Output 25 mW/600Ω, nominal
RECEIVER:
Reference Sensitivity:
0.5 uV max. / 12 dB SINAD
Adj. Channel Sel.:
60 dB (12.5 kHz); 70 dB (25 kHz)
Intermodulation:
70 dB
Spurious Response:
> 70 dB
Hum and Noise:
< -80 dBW squelched
Frequency Response:
+1/-3 to 6 ddB/octave, de-emphasis
Rx Recovery Time:
250 milliseconds, max.
TRANSMITTER:
RF Power Output:
1 watt or 10 watt selectable
Duty Cycle:
20% at 10 watt
Conducted Spurious:
-64 dBc (high power)
-55 dBc (low power)
Frequency Stability:
± 0.0003%
Distortion:
< 4%, max.
Rated Deviation:
± 2.5 or ± 5.0 kHz (NPX138N)
± 5.0 kHz (NPX138, NPX066)
Modulation Limiting:
85% of rated deviation
Approvals:
TC STC #SA99-211, TC STC #SH05-12, FAA STC #SA01170NY, FAA PMA
Install Kit:
NPX-IKC (Crimp)
Product Codes
- Mfr Part No:NPX138N-900-00
- EDMO #:NPX138N900
- Brand:CANYON AEROCONNECT
- Category:Aircraft Audio
