Networked GPS Antenna Spitter | 2 Outputs, 1 input, TNC Connector
Product Description

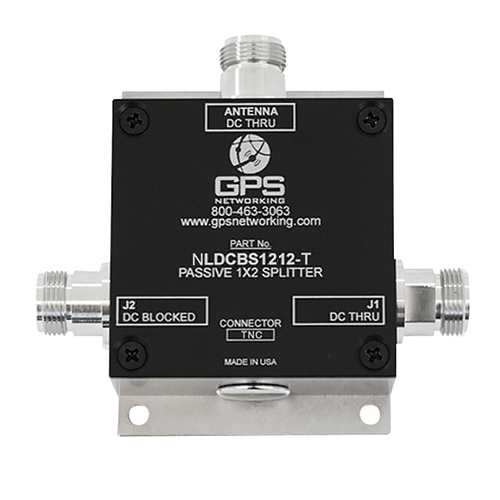

The NLDCBS1212 is a passive, networked GPS splitter with one input and two outputs and is based on the Wilkinson splitter design. The frequency response covers the entire GPS L-band (GNSS) frequencies with excellent gain flatness. In the standard configuration without external power, RF output (J1) passes DC from the connected GPS receiver, through the splitter and onto the antenna, while the other RF outputs remain DC blocked. When optional external power is applied, the DC output voltage on all RF outputs become user selectable. Each DC blocked output is loaded with a 200Ω resistor to simulate the antenna current draw to prevent false antenna alarm faults.
Features
- Excellent gain flatness for all GNSS frequencies
- Extremely flat group delay with a variation less than 1 ns
- Low insertion loss
- Passes entire L-band (GNSS) frequencies
- Phase matched outputs (less than 1.0)
- Prevents antenna alarm faults from connected devices with 200 DC blocked outputs
Specifications
Weight:
11.8 oz (340 g)
Dimensions:
1.3 x 3.25 x 2.5 in (including base plate)
Operating Temperature:
-40°C to 75°C
Finish Housing and Base Plate:
Electroless Nickel Plated MIL-C-26074C Class 1, .0001-.0003 Max
Finish Lid:
Anodize, Type II, Class 2, Black, per MIL-A-8625
Frequency Range:
1.1 - 1.7 GHz
Impedance:
50Ω
Input SWR:
2.0:1
Output SWR:
1.5:1
Insertion Loss:
—7.5 to -9.5 dB, -8.5 dB typical
Gain Flatness:
1.0 dB
Amplitude Balance:
1.0 dB
Phase Balance:
1°
Isolation (Adjacent ports):
15 dB (Opposite ports: 22 dB)
Group Delay Flatness:
1 ns
Product Codes
- Mfr Part No:NLDCBS1X2-T/12/MC
- EDMO #:NLDCBS1212
- Brand:GPS NETWORKING
- Category:GPS Components & Accessories
