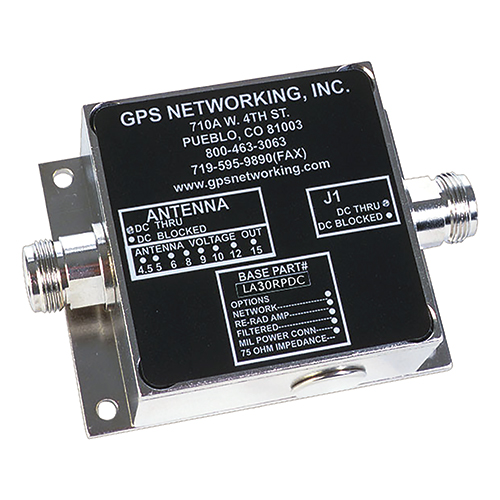

Network Line Amplifier | 20 dB gain, BNC Connector
Product Description
This GPS network line amplifier provides 20 dB gain and has one active input and one output that is optimized for boosting GPS signals. This GPS amplifier accepts signals covering all major GNSS constellations with excellent gain flatness and a very low noise figure. In the standard configuration, the J1 port accepts DC voltage from a connected GPS receiver and passes this voltage through to power the internal amplifier while unregulated voltage is passed through the antenna port to up stream devices. In networked configuration (externally powered), the output J1 port is DC blocked, and a customer-defined output voltage is provided via the antenna port.
This network line amplifier (EDMO# NLA20RDCBT) provides 20 dB of gain and has BNC connectors.
Features
- Very low Noise Figure: 1.05 dB NF, typical @ GPS L1
- Wide Accepted Frequency Range: accepts signals from entire L-band covering major GNSS constellation
- Customizable fixed output gain
- High 1 dB compression point and 3rd order intercept point
Specifications
Frequency Range:
1.1 GHz — 1.7 GHz
Characteristic Impedance:
50Ω
Reverse Isolation:
-57 dB, typical (-50 dB, min.)
Req. DC Input V.:
3.3 VDC — 15 VDC
Current Draw:
18 mA
Gain:
19 dB — 21 dB (20 dB, typical)
Input SWR:
1.7:1, typical (2.0:1, max.)
Output SWR:
1.7:1, typical (2.0:1, max.)
Noise Figure:
L1: 1.05 dB
L2: 1.1 dB
Band Gain Flatness:
0.5 dB, typical (1 dB, max.)
Input P1dB:
-24 dBm
3rd Order Interrupt:
-13.5, typical
Product Codes
- Mfr Part No:NLA20RDCB-T
- EDMO #:NLA20RDCBT
- Brand:GPS NETWORKING
- Category:GPS Components & Accessories
