Military Hi-Isolation Networked Amplified GPS Splitter | 1 input, 2 output, TNC Connectors
Product Description

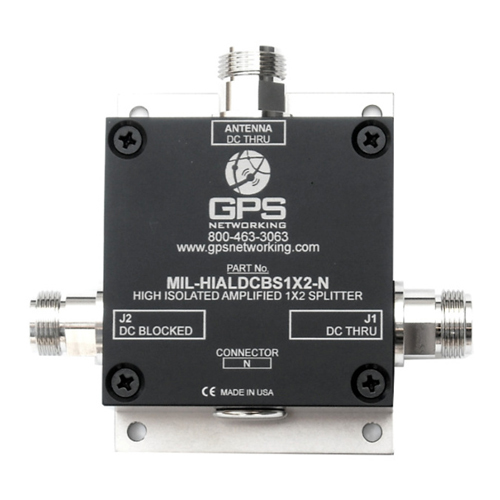

This Military Qualified Hi-Isolation amplified network loaded DC blocked GPS splitter features one input and two outputs for spitting RF frequencies from 1.1 GHz — 1.7 GHz. It is designed to amplify and split the L-band frequency to multiple devices from a single antenna. In the standard configuration, the J1 port passes DC voltage from a connected device to the antenna or another device up from the splitter. The other port J2 is DC blocked and loaded with a 200Ω resistor to simulate antenna current draw which prevent alarm faults. Mil-Specs splitters are qualified to rigorous MIL-STD 810F environmental & MIL-STD-461F EMI standards.
This Military Hi-Isolations amplified GPS splitter (EDMO# NHIALDCBS2) features one input and two outputs, TMC-type female connectors, 5-volt output voltage, and 9-32 VDC [customer supplied] source voltage with MIL DC Connector (Includes Mate).
Features
- Precise amplitude balanced: <1 dB variation between ports
- Flat group delay: <1 ns variation between L1 & L2
- High isolation: 50 dB between ports, across operating frequency
- Wide accepted frequency range: covering entire L-band & major GNSS constellations
- Efficiently blocked ports: 200Ω resistor prevents antenna alarm faults
- Matched phase balance: <4° variation between ports
- Qualification and test reports available
Specifications
Weight:
10.2 oz (289 g)
Dimensions:
1.3 x 3.25 x 2.5 in (not including connectors)
Operating Temperature:
-57°C to 87°C
Frequency Range:
1.1 GHz — 1.7 GHz
Characteristic impedance:
50Ω
Req. DC Input V.:
3.3 VDC — 15 VDC
Current Draw:
12 mA, typical (20 mA, max.)
Isolation:
50 dB — 56 dB
Input SWR:
2.0:1
Output SWR:
2.0:1
Noise Figure:
L1: 2.8 dB
L2: 5.15 dB
Amplitude Balance:
1.0 dB, max.
Phase Balance:
0.5°, typical (1.0°, max.)
Group Delay Flatness:
0.73 ns, typical (1.0 ns, max.)
Input P1dB:
-25 dBm
Source Voltage Option:
9VDC — 32 VDC (customer supplied) MIL-DTL-5015 10SL DC Connector (Includes Mate)
Output Voltage:
5V @ 130 mA
Connector Option:
TNC type
Product Codes
- Mfr Part No:MIL-NHIALDCBS1X2-T/5/MC
- EDMO #:NHIALDCBS2
- Brand:GPS NETWORKING
- Category:GPS Components & Accessories
