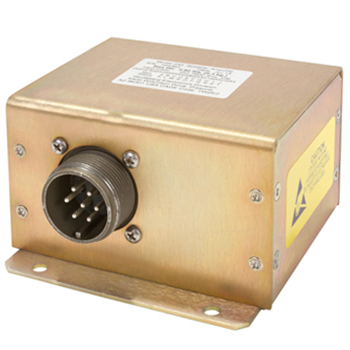

245 Speaker Amplifier | 18 Watt, 7.75 Vrms/600 Ohms

Product Description

The Model 245 speaker amplifier is designed to be interchangeable in form, fit, and function with the Collins Avionics Model 365F-3 speaker amplifier. This PA amplifier provides 18 watts of output power with less than 1% distortion. The Model 245 is an excellent choice for cabin or cockpit applications to replace an existing Collins unit or for new installations. It is a suitable solution for cabin paging, cockpit speaker, and music applications.

Version NAT245 has an input of 7.75 VRMS into 600Ω.

Specifications

• Weight:
  0.4 lb, max
• Dimensions:
  2.2 x 3.6 x 3.9 in, excludes mating connectors
• Power Supply:
  2.5 amps, max @ 27.5 VDC
• Speaker Output:
  18 watts into 4, <1% distortion
• Input impedance:
  600 ohms

Product Codes

• Mfr Part No
  245
• ECCN
  7A994
• SCHEDULE B CODE
  8518.40.2000
• TSO
  C50c

Documentation

• NAT245 Manual
