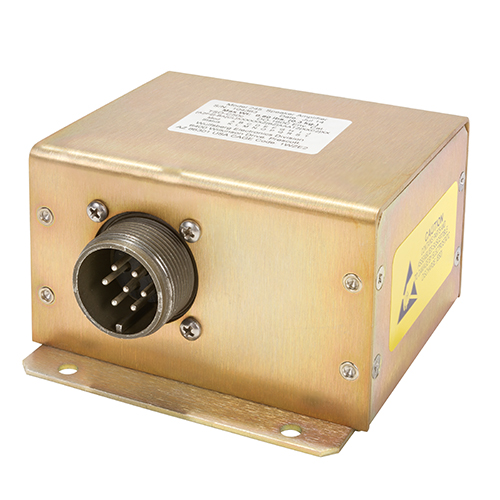

245 Speaker Amplifier | 18 Watt, 0.25 Vrms/1600 Ohms
Product Description
The Model 245 speaker amplifier is designed to be interchangeable in form, fit, and function with the Collins Avionics Model 365F-3 speaker amplifier. This PA amplifier provides 18 watts of output power with less than 1% distortion. The Model 245 is an excellent choice for cabin or cockpit applications to replace an existing Collins unit or for new installations. It is a suitable solution for cabin paging, cockpit speaker, and music applications.
Version NAT245 has an input of 0.25 VRMS into 1600Ω.
Features
- Accepts differential and single ended inputs
- Over-temperature and over-current protection
- Immunity to electrical interference
- 18 watt output power
- Certified to TSO-C50c
Specifications
Weight:
0.4 lb, max
Dimensions:
2.2 x 3.6 x 3.9 in, excludes mating connectors
Power Supply:
2.5 amps, max @ 27.5 VDC
Speaker Output:
18 watts into 4, <1% distortion
Input impedance:
1600 ohms
Product Codes
- Mfr Part No:245-002
- EDMO #:NAT245-002
- Brand:CANYON AEROCONNECT
- Category:Aircraft Audio
- ECCN:7A994
- SCHEDULE B CODE:8518.40.2000
- TSO:C50c
