Networked Amplified GPS Splitter | 1 input, 8 output, TNC Connectors
Product Description

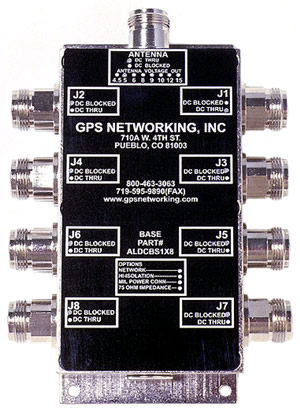

This amplified network loaded DC blocked GPS splitter features one input and eight outputs for spitting RF frequencies from 1.1 GHz — 1.7 GHz. It is designed to amplify and split the L-band frequency to multiple devices from a single antenna. In the standard configuration, the J1 port passes DC voltage from a connected device to the antenna or another device up from the splitter. The other ports J2—J8 is DC blocked and loaded with a 200Ω resistor to simulate antenna current draw which prevent alarm faults.
This amplified GPS splitter (EDMO# NALDCBS1X8) features one input and eight outputs, TNC-type female connectors, 5-volt output voltage, and 110V source voltage.
Features
- Excellent amplitude balance: <1 dB variation between ports
- Flat group delay: <1 ns between L1 & L2
- High output gain: 14 dB across operating frequencies
- Wide accepted frequency range: covers entire L-band & major GNSS constellations
- Efficiently blocked ports: 200Ω resistor prevents antenna alarm faults
- Matched phase balance: < 14° variation between ports
Specifications
Weight:
19.3 oz (547 g)
Dimensions:
1.3 x 5.25 x 2.5 in
Operating Temperature:
-57°C to 87°C
Frequency Response:
1.1 GHz — 1.7 GHz
Characteristic Impedance:
50Ω
Input SWR:
2.0:1
Output SWR:
2.0:1
Noise Figure (Typical):
L1: 2.25 dB
L2: 4.75 dB
Gain Flatness:
0.5 dB, typical (1.0 dB, max.)
Amplitude Balance:
1.0 dB, max.
Phase Balance:
14°, max. between ports
Isolation:
L1: 16 dB
L2: 12 dB
Group Delay Flatness:
0.25 ns, typical (1 ns, max.)
Input P1dB:
-23 dBm
Source Voltage:
110 VAC [Transformer ITA Type A Wall Mount)]
Output Voltage Option:
5V @ 130 mA
Connector Option:
TNC type
Product Codes
- Mfr Part No:NALDCBS1X8-T/5/110
- EDMO #:NALDCBS1X8
- Brand:GPS NETWORKING
- Category:GPS Components & Accessories
