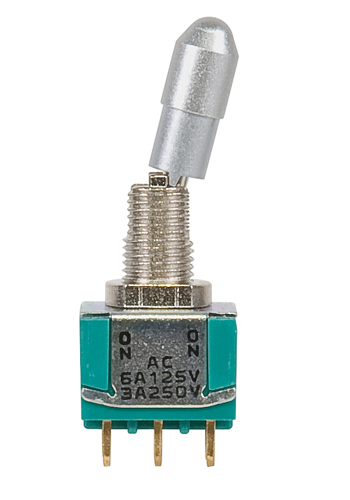

Green Series Toggle Switch | Locking, DPDT, ON-ON

Green Series Toggle Switch | Locking, DPDT, ON-ON

TE CONNECTIVITY

Call For Pricing
A tariff fee of $3.4925 EA may apply.
In stock
EDMO # MTL-206N
MFR Part # MTL206N
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Green Series Toggle Switches have silver slugs with all contact surfaces gold flashed, this inhibits oxidation and also offers a very low initial contact resistance. The design also includes overmolded terminals which eliminate any voids with epoxy sealed terminals.

Version MTL-206D is a double-pole, double-throw toggle switch. Positions: ON-ON with 2-position lever lock

Features

  • Wire lug, PC terminals
  • Threaded panel mount
  • Overmolded terminals
  • 10 mOhms maximum Initial contact resistance
  • 1,000 MOhms minimum insulation resistance
  • 1500VRMS at sea level Minimum dielectric strength
  • RoHS Compliant
  • Break-before-make contact timing

Also Purchased

Specifications

  • Bushing:
    1/4-40 UNS-2A
  • Temperature Range:
    -4°F to +176°F (-20°C to +80°C)
  • Contact current max:
    6A @ 125VAC 3A @ 250VAC 4A @ 28VDC
  • Contact Voltage AC:
    115V nominal
  • Contact Voltage DC:
    28V
  • Contact configuration:
    Double-pole, double-throw (DPDT)
  • Switch operation:
    ON-ON

Related Products

Product Codes

  • Mfr Part No
    MTL206N
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.50.9065
