TOGGLE SWITCH/SPDT (single pole double throw), ON-NONE-ON, hole mount, terminal seal, gold flash over silver plating.
Product Description
The Green Series Toggle Switches have silver slugs with all contact surfaces gold flashed, this inhibits oxidation and also offers a very low initial contact resistance. The design also includes overmolded terminals which eliminate any voids with epoxy sealed terminals.

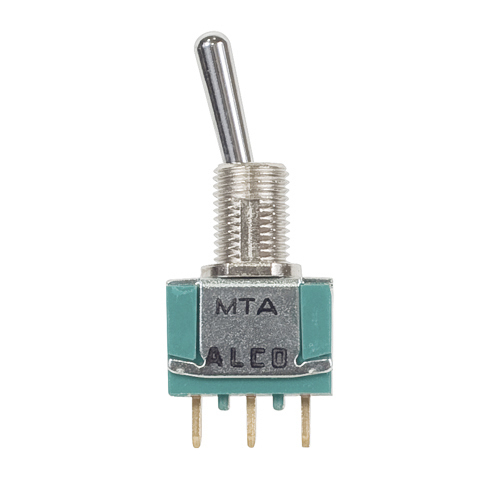

Version MTA-106D is a single-pole, double-throw toggle switch. Positions: ON-ON
Features
- Wire lug, PC terminals
- Threaded panel mount
- Overmolded terminals
- 10 mOhms maximum Initial contact resistance
- 1,000 MOhms minimum insulation resistance
- 1500VRMS at sea level Minimum dielectric strength
- RoHS Compliant
- Break-before-make contact timing
Specifications
Bushing:
1/4-40 UNS-2A
Temperature Range:
-4°F to +176°F (-20°C to +80°C)
Contact current max:
6A @ 125VAC
3A @ 250VAC
4A @ 28VDC
Contact Voltage AC:
115V nominal
Contact Voltage DC:
28V
Single-pole, double-throw (SPDT)
Switch operation:
ON-ON
Product Codes
- Mfr Part No:1-1437558-0
- EDMO #:MTA-106D
- Brand:TE CONNECTIVITY
- Category:Electrical Interconnect
