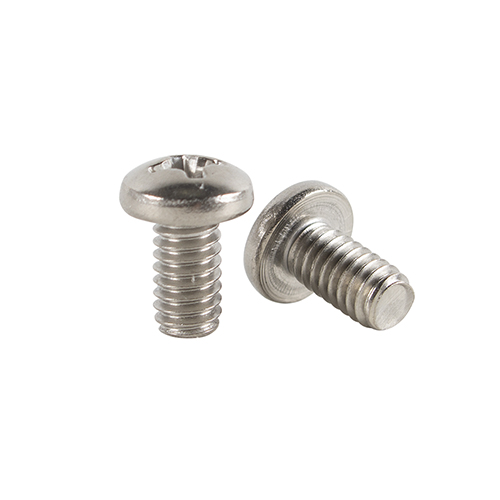

MS51957-42 Pan Head Machine Screw | 8-32 Thread, 5/16-inch Length, 0.322-inch Phillips Head


BILD INDUSTRIES

Call For Pricing
In stock
EDMO # MS51957-42
MFR Part # MS51957-42
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

This MS51957 series pan head machine screw (EDMO# MS51957-42) has 8-32 threads, a 0.322-inch Phillips head, and is 5/16-inch in length. It is also made of stainless steel.

Features

  • Phillips Pan Head Machine Screw
  • 300 Series Stainless Steel
  • Passivate Finish per QQ-P-35

Also Purchased

Specifications

  • Thread Class:
    2a
  • Thread Direction:
    Right-hand
  • Thread Length:
    0.3125 in
  • Fastener Length:
    0.3125 in
  • Head Style:
    Pan Head
  • Head Diameter:
    0.306 – 0.322 in
  • Internal Drive Style:
    Cross recess type 1
  • Nominal Thread Diameter:
    0.164 in
  • Thread Quantity Per Inch:
    32
  • Minimum Tensile Strength:
    80000 lb/sq. in
  • Screw Material:
    Stainless Steel
  • Thread Series Designator:
    UNF

Product Codes

  • Mfr Part No
    MS51957-42
  • MIL SPEC
    MS51957-42
  • ECCN
    EAR99
  • MIL SPEC
    MS51957-42
  • SCHEDULE B CODE
    7408.29.0000
