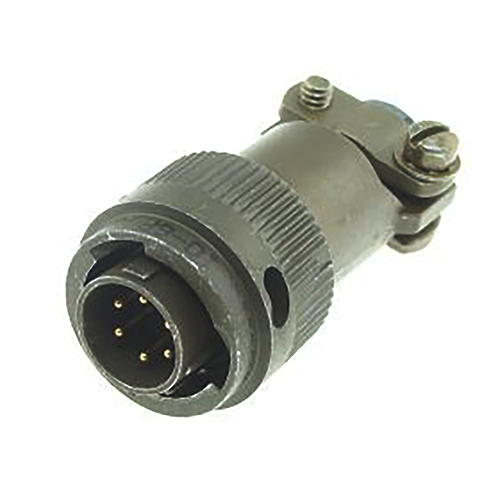

Circular MIL Spec Connector Plug | 6-Contact, MIL-C-26482, Strain Relief


COMM INNOVATIONS

CALL FOR PRICING
Available To Order
EDMO#MS316F106P
MFR#MS3116F10-6P

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

MIL-DTL-26482 Series I are commercial grade circular connectors provide the performance and versatility when needed in applications demanding high reliability.

This Mil-Spec 6-pin circular connector (EDMO# MS316F106P) is a solder type and features a straight connector and strain relief.

Features

  • RoHS compliant harsh environment conductive plating
  • Insert and main joint gasket are molded from resilient neoprene provides moisture sealing
  • Gold-plated copper alloy pins and sockets

Specifications

Weight:
1.2 oz

Wire Gauge:
24 AWG to 20 AWG

Number of Positions:
6

Contact Gender:
Pin (Male)

Insert Arrangement:
10-06

Shell Size:
10

Shell Style:
in-line

MIL Type:
MIL-DTL-26482

Termination Style:
Solder

Mounting Style:
Wire

Current Rating:
7.5A

Contact Plating:
Gold

Contact Material:
Copper alloy

Series:
MS 264821

Mounting Angle:
Straight

Voltage Rating:
600V

Shell Plating:
Olive Drab Chromate over Cadmium

Mating Style:
Bayonet

Shell Material:
Aluminum alloy

Product Codes

  • Mfr Part No:MS3116F10-6P
  • EDMO #:MS316F106P
  • Brand:COMM INNOVATIONS
