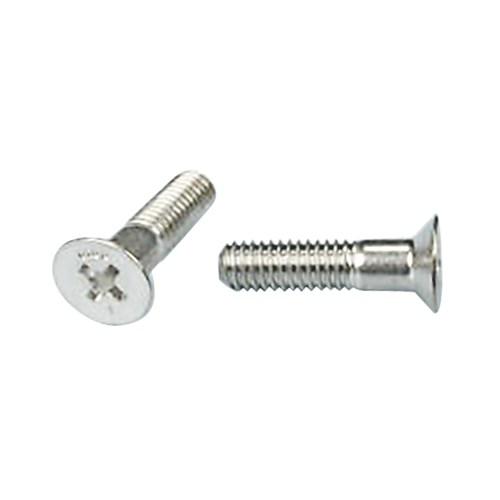

MS24694C48 Phillips Countersunk Screw | 0.406 in. Length, 10-32 Threads
Product Description
MS24694-C Series countersunk screws feature a 100 degree flat head and are made of a stainless steel material that has been heat treated providing additional hardness.
This Phillips head countersunk screw (EDMO# MS24694C48) has a length of 0.406-inch and a 10-32 thread size.
Features
- CRES steel material per FED-STD-66 (300 SERIES)
- Heat treated alloy steel with hardness C26 – C32
- Alloy steel finish, CAD PER QQ-P-416 TYPE II, CLASS 3 CRES, passivate PER QQ-P-35
Specifications
Thread Class:
3a
Thread Direction:
Right-hand
Thread Length:
0.188 – 0.328 in, minimum
Fastener Length:
0.391 – 0.438 in, nominal
Head Style:
Flat countersunk
Head Diameter:
0.327 – 385 in
Internal Drive Style:
Cross recess type 1
Nominal Thread Diameter:
0.190 in
Thread Quantity Per Inch:
32
Minimum Tensile Strength:
85000 lb/sq. in
Countersink Angle:
99° — 101.0°
Screw Material:
Steel corrosion resisting
Screw Material Document And Classification:
66 Fed Std Single Material Response
Screw Surface Treatment:
Passivate
Thread Series Designator:
UNC
Product Codes
- EDMO #:MS24694C48
- Brand:BILD INDUSTRIES
- Category:Hardware
