PanaVise Heavy Duty Base | 90° Tilt, 360° Turn, 360° Rotation

MODEL400

PANAVISE PRODUCTS

CALL FOR PRICING
Available To Order
EDMO#MODEL400
MFR#400

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

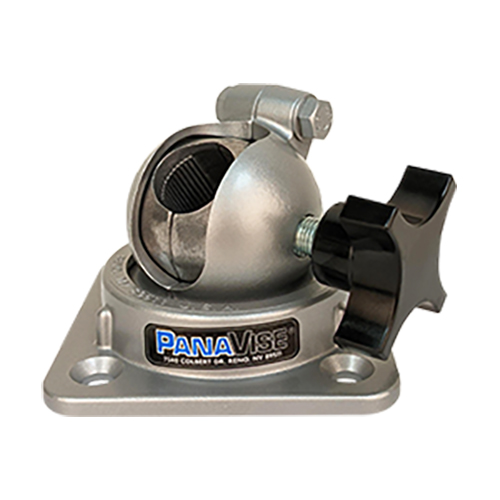

Create a custom work holding tool for your specific needs with the PanaVise system of interchangeable Heads, Bases and Base Mounts. All PanaVise Bases include the patented "split ball" which allows a Head to be positioned through three planes (90° Tilt, 360° Turn & 360° Rotation). The heavy duty base (EDMO# MODEL400) accepts any 1 inch (25.4 mm) diameter shaft, and recent engineering changes allows the 400 base to hold up to 75 lbs (34.0 kg) at 45°.

Features

  • Supports weights up to 75 lbs (34.0 kg) at 45°
  • Recommended for use with the 437 Heavy Duty Fixturing Head
  • Accepts any 1 in (25.4 mm) diameter shaft to a depth of 1.7 in (43.2 mm)
  • Single knob controls head movement through 3-planes: 90° Tilt, 360° Turn, and 360° Rotation
  • Square base has four 0.38 in (9.65 mm) mounting holes that measure 2.875 in (22.225 mm) square (screws not included)
  • A hole is provided in the bottom of the base for a 1/4-20 flat head screw to permanently attach any shaft

Specifications

Weight:
1.5 lbs (0.7 kg)

Dimensions:
4.09 x 4.09 x 3.25 in (103.62 x 103.62 x 82.5 mm)

Product Codes

  • Mfr Part No:400
  • EDMO #:MODEL400
  • Brand:PANAVISE PRODUCTS
