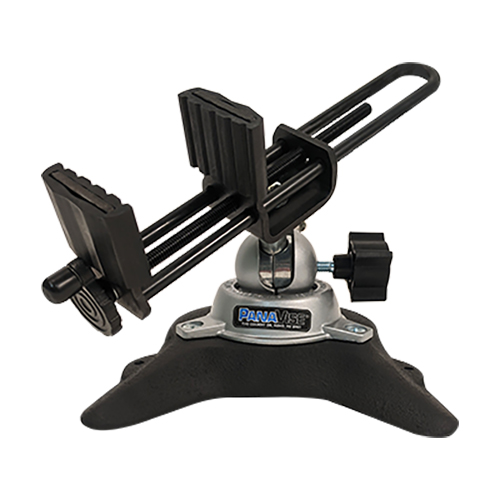

PanaVise Portable General Purpose Vise | 90° Tilt, 360° Turn, 360° Rotation
Product Description
All PanaVise vises and work holding tools have a "lifetime warranty" and the 300 series vises have interchangeable components. You can easily add a Base Mount or another Head. The Portable General Purpose Vise (EDMO# MODEL309) consists of the wide opening head, the low profile base, and the weighted base mount. It's the take anywhere, everyday on the go weighted work vise!
Features
- Wide Opening Vise Head can hold a wide variety of objects including circuit boards, coils, tuners, PC boards, carburetors, water pumps, and other large objects
- Ribbed, neoprene jaw pads provide a sure grip and can hold and insulate PC boards and other larger objects
- Reverse the pads and the wide "V" holds delicate cylindrical objects
- Remove jaw pads from steel jaws when working with high heat
- Lowest Profile Base on the market that enables you to work closer to your bench surface
- Low Profile Base is easily controlled by a single knob that allows head movement through 3-planes: 90° Tilt, 360° Turn, and 360° Rotation
- 5 lbs Cast Iron Weighted Base Mount adds stability and portability to your PanaVise combo so you can take it anywhere with ease
- Weighted Base Mount includes four non-marring, anti-skid pads, two 1/4-20 holes are drilled and tapped on the side extensions for mounting accessories
Specifications
Base Weight:
1.3 lbs (0.6 kg)
Base Height:
2.5 in (63.5 mm)
Base Mount Weight:
5.0 lbs (2.3 kg)
Base Mount Dimensions:
6.875 x 7.5 x 1.1875 in (174.6 x 190.5 x 30.2 mm)
Head Weight:
1.6 lbs (0.7 kg)
Head Height:
5.125 in (130.2 mm)
Head Length:
11 in (279.4 mm)
Jaw Dimensions:
1.875 x 1.5 in (47.6 x 38.1 mm)
Jaw Opening:
6 in (152.4 mm) with pads, 6.25 in (158.8 mm) without pads
Product Codes
- Mfr Part No:309
- EDMO #:MODEL309
- Brand:PANAVISE PRODUCTS
- Category:Tools & Cases
