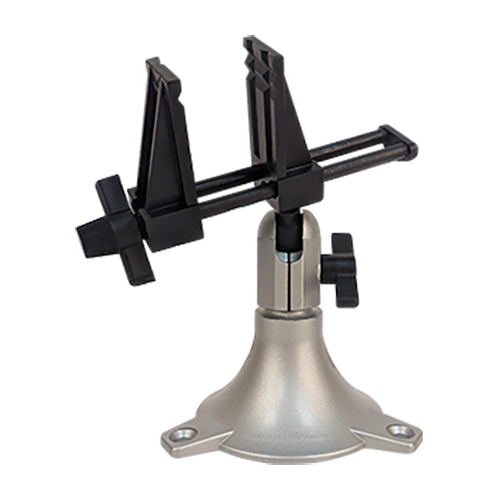

PanaVise Jr. Mini Tabletop Vice | 210° Tilt, 360° Turn, 360° Rotation
Product Description
All PanaVise vises and work holding tools have a "lifetime warranty". This AMAZING Mini-Vise (EDMO# MODEL201) is perfect for arts and crafts, model making, electronics and other small projects! The patented "split ball" allows the head to tilt, turn and rotate and position your work anywhere you want it.
Features
- Easy-to-use single knob controls head movement through 3-planes: 210° Tilt, 360° Turn, & 360° Rotation
- Adjusting knob controls jaw pressure for delicate work
- Grooved jaws are excellent for holding small objects and are made of reinforced thermal composite plastic
- Neoprene jaw pads are available for holding extremely delicate items
- Base features 4.3125 in (109.5mm) bolt circle countersunk for three 1/4 in (6.3mm) flat-head screws (not included)
- Compatible with all PanaVise Base Mounts
Specifications
Weight:
1.2 lbs (0.6 kg)
Height:
6.75 in (173mm)
Jaw Height:
2 in (50.8mm)
Jaw Width:
1 in (25.4mm)
Jaw Opening:
2.875 in (73mm)
Continuous Heat Tolerance:
350°F (177°C)
Intermittent Heat Tolerance:
450°F (204°C)
Product Codes
- Mfr Part No:201
- EDMO #:MODEL201
- Brand:PANAVISE PRODUCTS
- Category:Tools & Cases
