Mini Line GPS Amplifer | 20 dB Gain, SMA Connector
Product Description
This line amplifier has a minimum gain of 20 dB with one input and one output in a miniature housing. The frequency response covers both L1/L2 and Glonass bands with excellent gain flatness. In normal configuration, the RF output (J1) passes DC from the connected GPS receiver through the amplifier to the antenna, allowing the GPS receiver to power both the antenna and the amplifier.

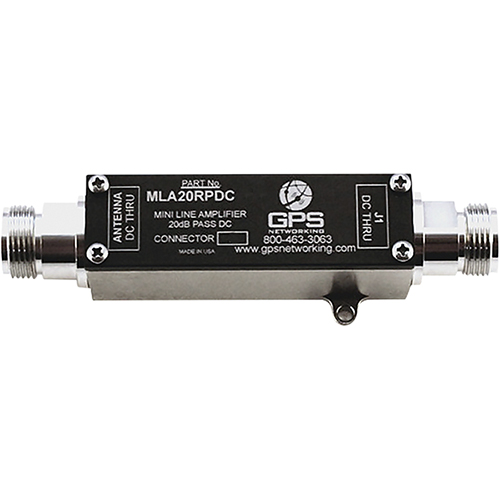

This mini line amplifier (EDMO# MLA20RDCBS) has SMA connectors.
Features
- Compact & lightweight form factor
- Low noise figure: typically 2.1 dB at GPS L1
- Wide accepted frequency range: covers entire L-band and major GNSS constellations
- Customizable output gain from 1 dB to 25 dB
- High 1 dB compression point and 3rd order intercept point
Specifications
Weight:
2.84 oz, max. (80.4 g)
Dimensions:
0.90 x 2.5 x 0.75 in (not including connectors)
Operating Temperature:
-57°C to 87°C
Frequency Range:
1.1 GHz — 1.7 GHz
Characteristic Impedance:
50Ω
Req. DC Input V.:
3.3 VDC — 15 VDC
Current Draw:
14 mA
Gain:
19 dB — 21 dB (21 dB, typical)
Input SWR:
1.7:1, typical
2.0:1, max.
Output SWR:
1.7:1, typical
2.0:1, max.
Noise Figure (Typical):
L1: 2.1 dB
L2: 3.8 dB
Band Gain Flatness:
0.5 dB, typical
1.0 dB, max.
3rd Order Intercept:
-15.5 dBm, typical
Connector Option:
SMA-type
Product Codes
- Mfr Part No:MLA20RDCB-SMA
- EDMO #:MLA20RDCBS
- Brand:GPS NETWORKING
- Category:GPS Components & Accessories
