Mini Line GPS Amplifier | 20 dB Gain, N Connector
Product Description
This mini line amplifier is a one input and one output that boosts GPS signals with up 20 dB gain. This active line amplifier accepts all major signals covering all major GNSS constellations with excellent gain flatness and low L1 noise figure. In the standard configuration, port J1 accepts DC voltage from a connected GPS receiver. This voltage is regulated and used to power the internal amplifiers while unregulated voltage is passed through the antenna port to power a connected active antenna or other upstream devices.

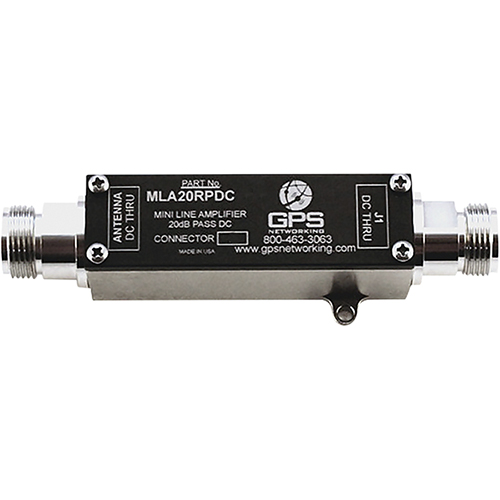

This network mini line amplifier (EDMO# MLA20RDCBN) has N-type connectors.
Features
- Compact & lightweight form factor
- Low noise figure: typically 2.1 dB at GPS L1
- Wide accepted frequency range: covers entire L-band and major GNSS constellations
- Customizable output gain from 1 dB to 25 dB
- High 1 dB compression point and 3rd order intercept point
Specifications
Weight:
2.84 oz (80.4 g)
Dimensions:
0.90 x 2.5 x 0.75 in (not including connectors)
Operating Temperature:
-57°C to 87°C
Frequency Range:
1.1 GHz — 1.7 GHz
Characteristic Impedance:
50Ω
Req. DC Input V.:
3.3 VDC — 15 VDC
Current Draw:
14 mA
Gain:
19 dB — 21 dB (20 dB, typical)
Input SWR:
1.7:1, typical (2.0:1, max.)
Output SWR:
1.7:1, typical (2.0:1, max.)
Noise Figure (typical):
L1: 2.1 dB
L2: 3.8 dB
Band Gain Flatness:
0.5 dB, typical (1.0 dB, max.)
Input P1dB:
-24.5 dBm
3rd Order Intercept:
-15.5 dBm
Connector Option:
N-Type
